Product Page Planning 15

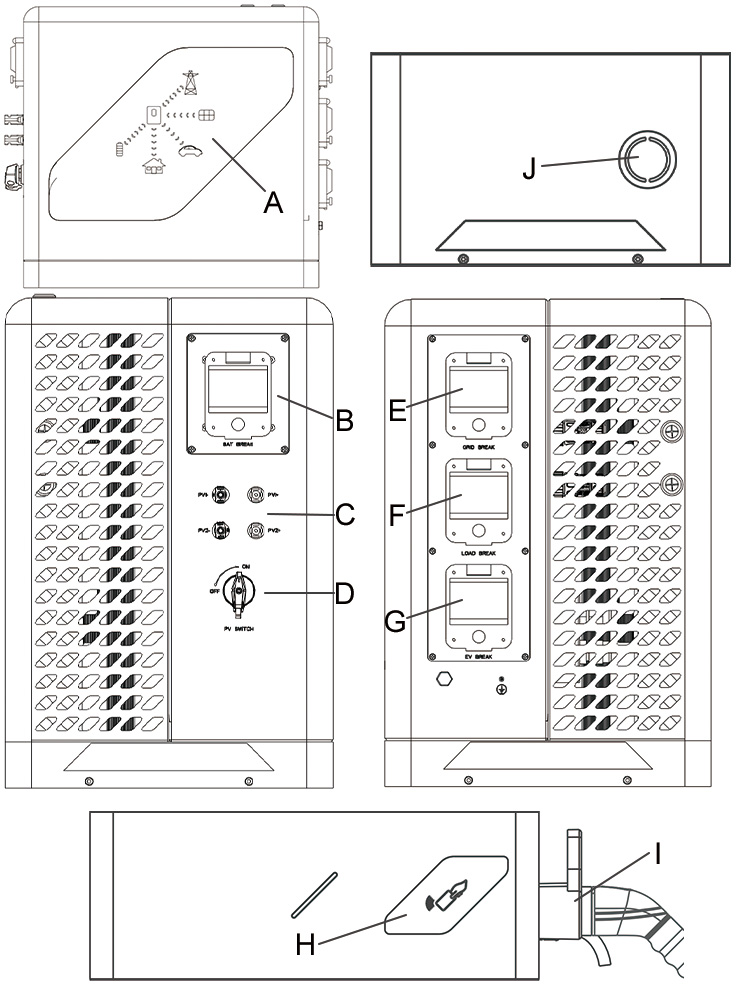

Product Details Display
|
A |
LED Display |
|
B |
Battery Switch |
|
C |
PV Input Terminal |
|
D |
PV Input Switch |
|
E |
Grid Switch |
|
F |
Load Switch |
|
G |
EV Charger Switch |
|
H |
NFC Card |
|
I |
Charging Pile |
|
J |
EV Charging Emergency Stop Button |
Product Introduction
The device is bi-directional and is suitable for PV systems with battery storage. The energy produced by the PV system is prioritised for load consumption (including EV charging), with excess energy used to charge the batteries, and any excess fed directly into the public grid. When the PV output is not sufficient to support the connected loads, the system automatically obtains energy from the batteries if they are sufficient. If the battery energy is not sufficient to meet its own consumption needs, energy is obtained from the public grid.
Features
● PV, Storage, EV charging and Powerdistribution Integrated.
● Controlled by built-in DSP and adoptadvanced SPWM technology.
● Modular design for good expansibility,up to 6 battery modules in parallel.
● Easy Installation within 20 minutes individually.
● 24-hour real-time online monitoring.
Product specification
|
Model# |
ESSC-HY5-EV7-BAT5 |
|
Inverter Data |
|
|
Maximum Input Power(W) |
7000W |
|
PV Input Voltage Range (V) |
150-500 |
|
MPPT Voltage Range (V) |
120 to 430 |
|
Number of MPPT |
2 |
|
Maximum Number of Input Strings per MPPT |
1 |
|
Maximum input current per MPPT |
15A/15A |
|
Nominal grid voltage (V) |
220/230/240 |
|
Nominal grid frequency (Hz) |
50Hz / 60Hz |
|
Rated power for grid discharge (W) |
5000 |
|
Maximum apparent power discharged to the grid (VA) |
5500 |
|
Backup power rating (W) |
4500 |
|
UPS Switching time |
<10ms |
|
Battery Data |
|
|
Battery Type |
LiFePo4 |
|
Individual battery nominal capacity (kWh) |
5.12 |
|
Number of expandable batteries |
6 |
|
Usable battery power range (kWh) |
5.12-30.72 |
|
Battery voltage range (V) |
41.6 to 58.5 |
|
Charging Pile Data |
|
|
Rated power (W) |
7000 |
|
Nominal voltage (V) |
220/230/240 |
|
Nominal frequency (Hz) |
50Hz / 60Hz |
|
Operating method |
Swipe card/APP/Insert gun self-start |
|
Output line |
Total length 5meters of AC charging gun output |
|
Conversion Efficiency |
|
|
Maximum efficiency |
98% |
|
European efficiency |
97% |
|
Maximum battery to AC efficiency |
95% |
|
MPPT efficiency |
99.9% |
|
System Parameter |
|
|
Operating temperature (°C) |
-25 to 55°C |
|
Relative humidity |
≤95% (25°C) |
|
Vibratory |
<0.5G |
|
Static (in a signal) |
<35 dB |
|
Height above sea level |
<2000 meters |
|
Protection class |
IP65 |
|
Cooling method |
Natural cooling |
|
Communication method |
RS485/CAN/WiFi |
|
Inverter Dimensions (L X H X W mm) |
645 x 557 x 370 |
|
Charging Post Dimensions (L X H X W mm) |
650 x 270 x 370 |
|
Individual Cell Size (L X H X W mm) |
585 x 270 x 370 |
|
Base Dimensions (W X H X Thickness mm) |
680 x 110 x 378 |

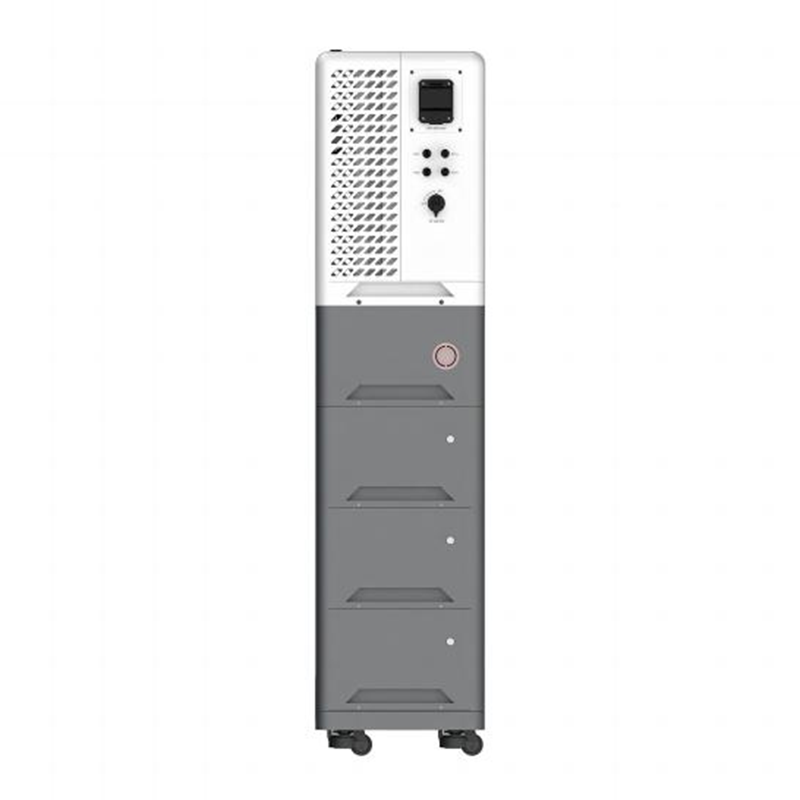

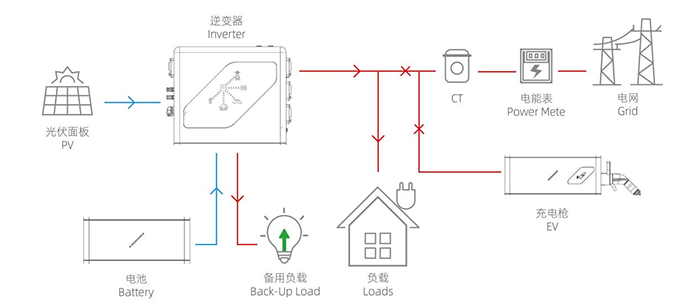

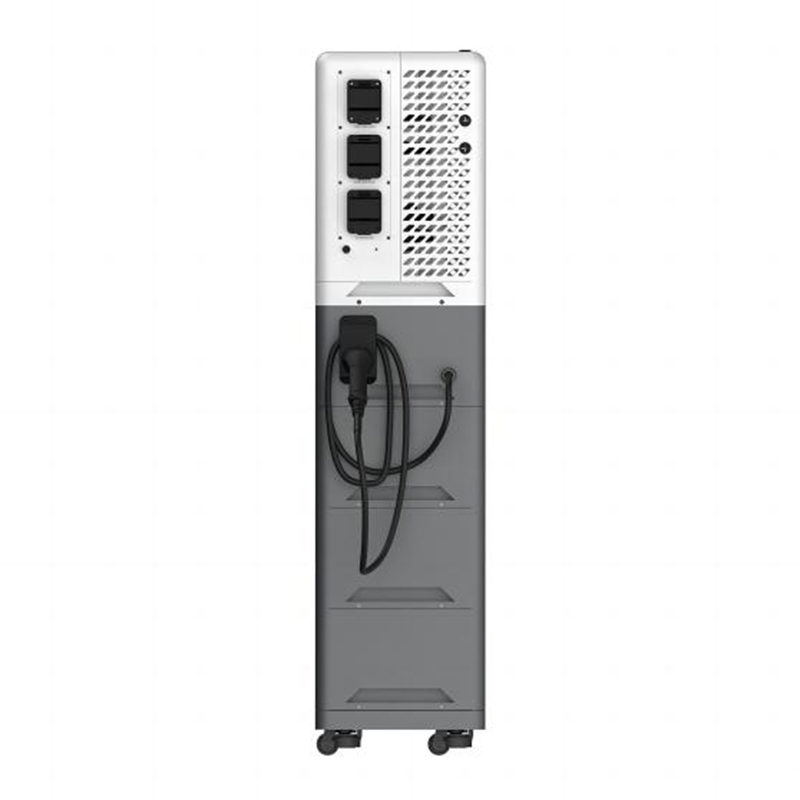

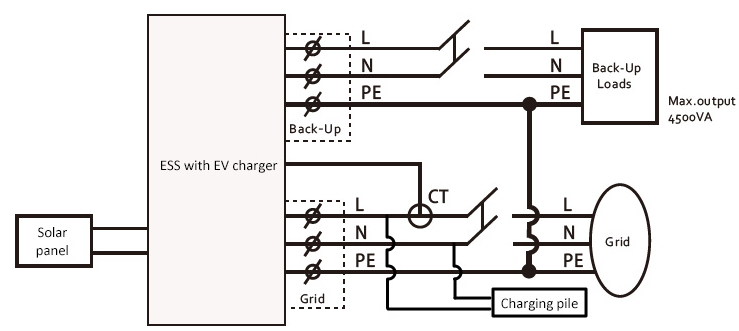

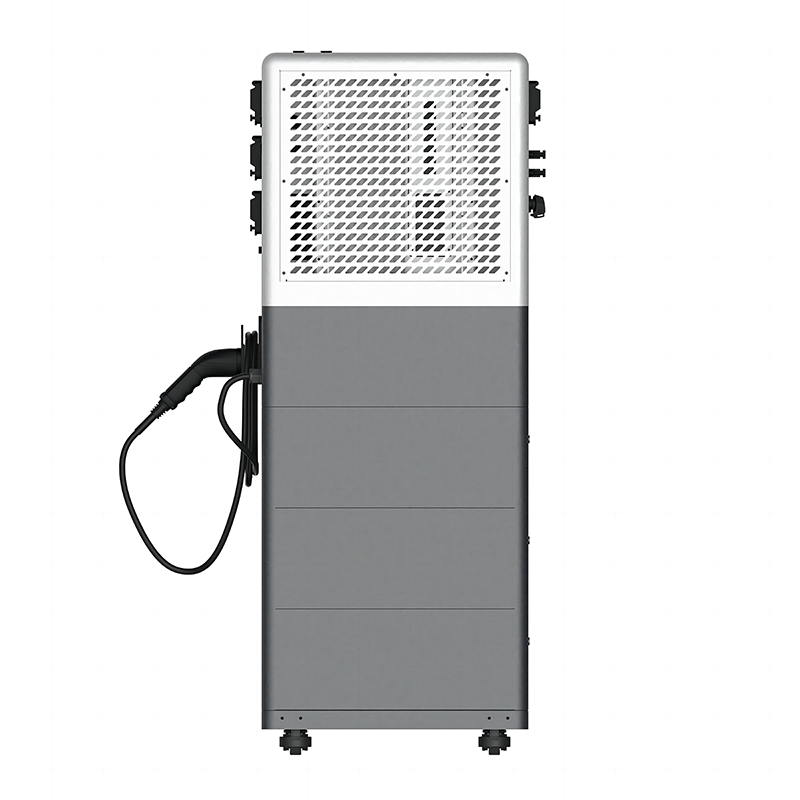

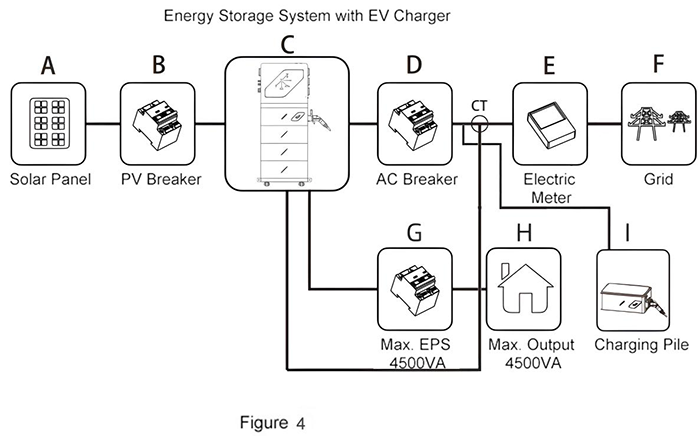

System Diagram
Working modes
Self Used Mode:
1.When the EV is in the charging state:
2.EV is not charged, when PV energy is sufficient:
3.EV not charging, when PV energy is not sufficient:
