Product Details Display
Product specification
This system is composed of a group of microinverters that convert direct current (DC) into alternating current (AC) and feed the power to the public grid. The system is designed for 2-in-1 microinverters, i.e., one microinverter is connected with two PV modules.
Each microinverter works independently so as to guarantee the maximum power generation of each PV module. This setup is highly flexible and reliable as the system enables direct control of the production of each PV module.
Features
Low photovoltaic input voltage, high andlow voltage isolated, safe to use；

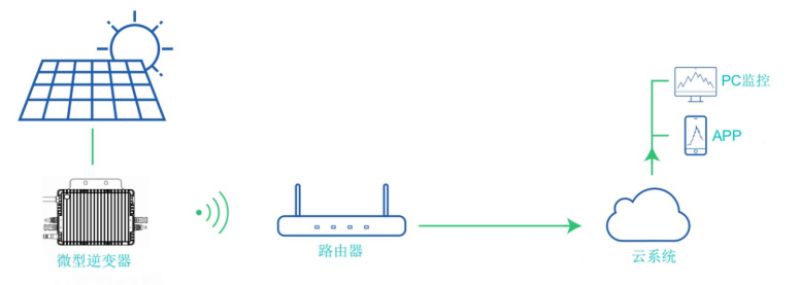

WIFI Remote monitoring；
Small and light-weighted,easy to install,P67 class protection；
Built-in MPPT，DSP control, DC to ACpeak efficiency up to 96.7%；
Support combined grid connection, up to 8 units:(Up to 6 units GT800TL).
Product specification
| GT400TL/GT⁶00TL/GT80OTL 丨 Speciications | |||||
| Model GT400TL GT600TL GT800TL | |||||
| PV Input(DC | |||||
| PV Max Input Power (W) 250x2 350 x2 450 ×2 | |||||
| PV Max Input Voltage (V) 60 60 60 | |||||
| Start-up Voltage (V 30 30 30 | |||||
| Full Load MPPT Voltage Range (V 30~55 30～55 30~55 | |||||
| Operating Voltage Range (V) 16~60 16~60 16~60 | |||||
| Max Input Current (A) 6.7A x2 12A x2 14A x2 | |||||
| Maximum input short-circuit current (A) 8A x2 15A x2 17A x2 | |||||
| Number of MPP Trackers 2 2 2 | |||||
| AC Outou | |||||
| Rated Output Power (W 400 600 800 | |||||
| Nominal Output Current (A) 1.7 2.6 3.48 | |||||
| Nominal Grid Voltage (V) 230(single-phase) 230(single-phase 230(single-phase | |||||
| Grid Voltage Range (V) 180~264VAC 180~264VAC 194-264VAC | |||||
| Nominal Grid Frequency (Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz | |||||
| Max.Total Harmonic Distortion <3%(rated power) <3%(rated power) <3%(rated power) | |||||
| Power Factor >0.99 >0.99 >0.99 | |||||
| Max Parallel 11pcs 8pcs 6pcs | |||||
| Anti-islanding Protectio | Yes | Yes | Yes | ||
| AC Short Circuit Protection | Yes | Yes | YeS | ||
| System | |||||
| Max.Eficiency | 96.70% | 96.70% | 96.70% | ||
| Protection Class | CLASS I | CLASSI | CLASS I | ||
| Protection Level | IP67 | IP67 | IP67 | ||
| Cooling Metho | Natural Coolin | Natural Cooling | Natural Cooling | ||
| Monitorin | WIFI | WIFI | WIFI | ||
| Dperating Temperature Range (C) | 40～+65 | 40～+65 | 40 ～+65 | ||
| Manufacturer's Warranty 10 Years 10 Years 10Years | |||||
| Mechanical Data | |||||

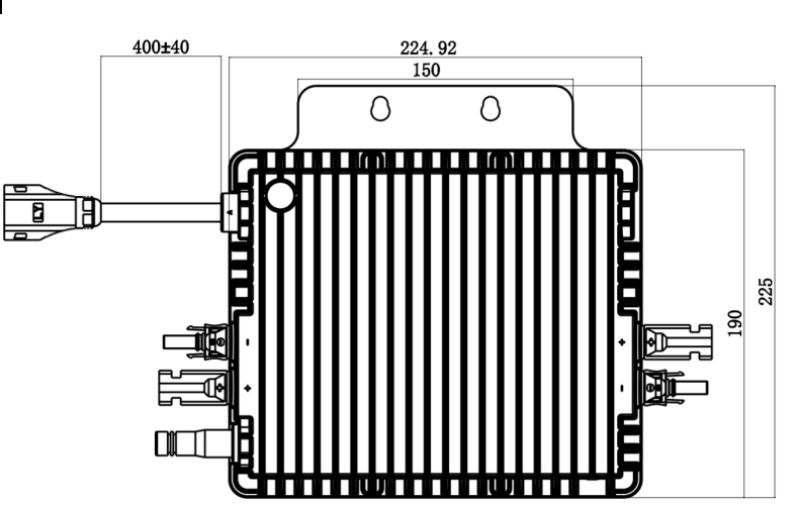

| Dimensions (W×H×Dmm) 225 x225x37 225x225x37 225x225 x37 | |||||
| Weight (kg 3.25 3.25 3.25 | |||||
| Product Certification | |||||
| Test standards | EC 62321-3-1:2013;IEC 62321-4:2013+A1:2017;IEC 62321-5:2013 IEC 62321-6:2015;IEC 62321-7-1:2015;IEC 62321-7-2:2017 IEC 62321-8:2017 |
||||
| ENIEC 61000-6-3:2021;ENIEC 61000-6-1:2019 | |||||
| ENIEC 61000-3-2:2019+A1:2021;EN 61000-3-3:2013+A2:2021 EN 62109-1:2010;EN 62109-2:2011 | |||||
| VDE-AR-N 4105:2018;conjunction with DIN VDE V 0124-100:2020 | |||||

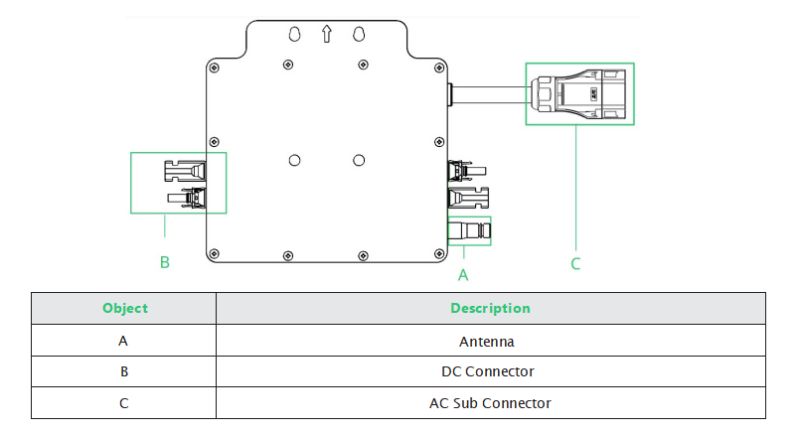

Connection diagram
