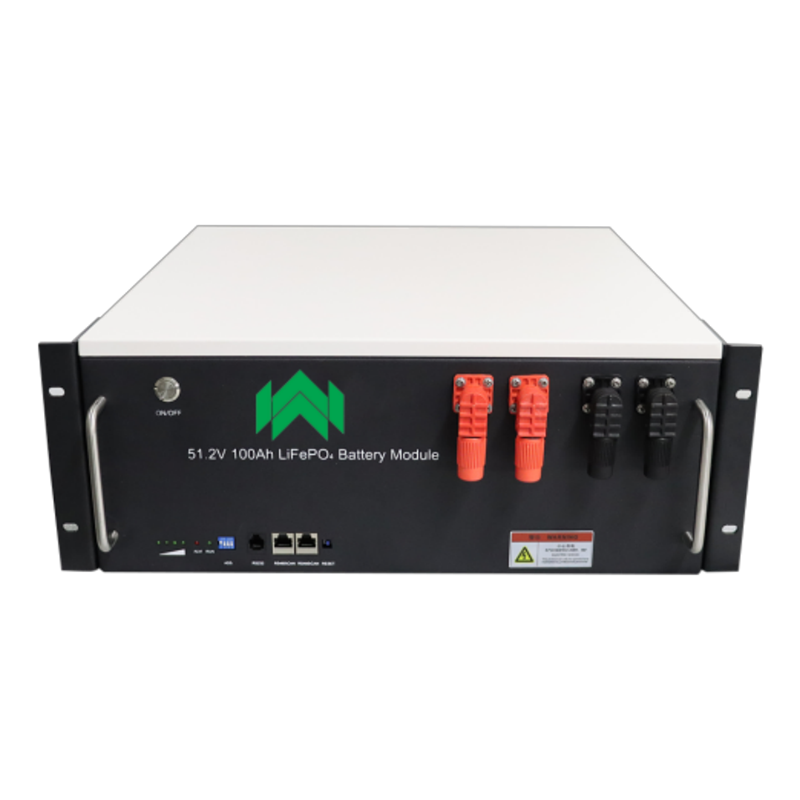

Portable Rack Type Energy Storage Battery
Product Details Display
Product Introduction
Cabinet -type energy storage products are mainly: battery box (PACK), battery cabinet. The battery box has 15 string or 16 string of iron phosphate batteries.
15 series Lithium iron phosphate battery, rated voltage 48V, working voltage range 40V -54.7V.
It has a long cycle life, with over 6000 cycles of 1C charging and discharging in an 80% DOD environment at room temperature.
The product series has two models, 50Ah and 100Ah, corresponding to 2.4KWH and 4.8KWH for energy storage.
The maximum working current of the product is 100A continuously, and it can support up to 15 products of the same model to be used in parallel.

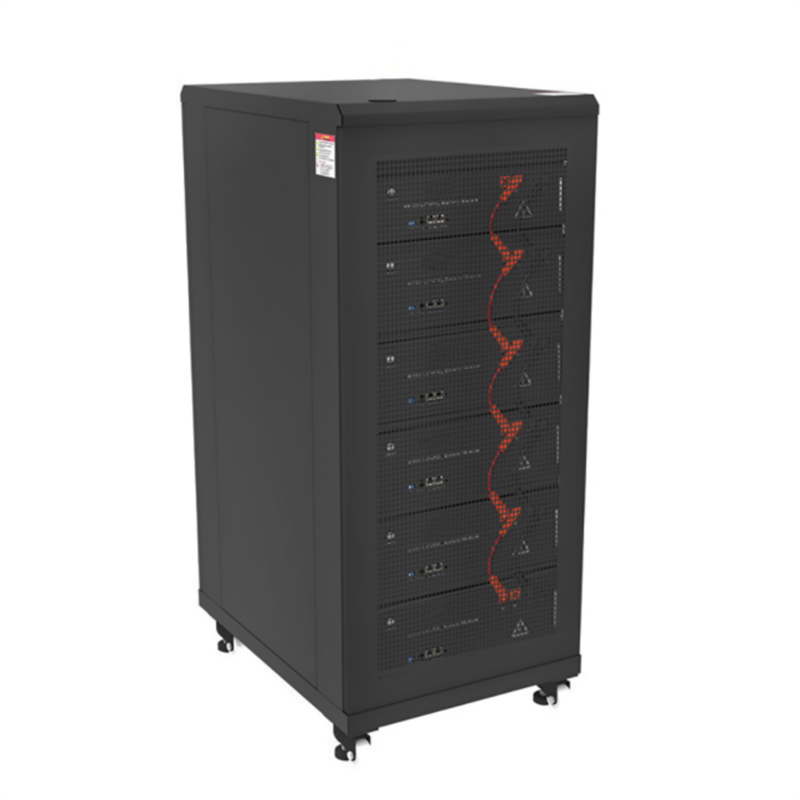

Standard 19 inch universal cabinet, with 3U and 4U standard cabinets according to different height dimensions of energy.
It is capable of matching multiple inverters including GROWATT, GOODWE, DeYe, LUXPOWER, etc and supports RS232 and RS485 communication functions, with multiple sleep and wake-up modes.
Features
1.Standardized design: standard 3U and 4U case, good applicability.
2.In parallel to enlarge energy: Add the current limiting module, support multiple battery parallel use, expand the battery capacity, meet the high energy demand of customers.
3.Intelligent lithium battery management system: With RS485 communication, you can monitor the battery status at any time and set protection parameters such as charge and discharge according to customers’ requirements.
4.Warning function: Warning functions such as overcharge, overdischarge, overcurrent, high temperature and low temperature can greatly reduce the potential safety hazard.
5.Balancing: Automatic collection of battery single series voltage, pressure difference up to 30MV (can be set), automatic start equalization function.
Product Specification
|
Description |
Parameters |
|
|
Model |
M15S100BL-U |
M16S100BL-U |
|
Array Mode |
15S |
16S |
|
Nominal Energy (KWH) |
4.8 |
5.0 |
|
Nominal Voltage (V) |
48 |
51.2 |
|
Charge Voltage (V) |
54.7 |
58.2 |
|
Discharge Cut-off Voltage (V) |
40 |
42 |
|
Standard Charging Current(A) |
20 |
20 |
|
Max.Continuous Charging Current (A) |
100 |
100 |
|
Max.Continuous Discharging Current (A) |
100 |
100 |
|
Cycle Life |
≥6000times@80%DOD,25℃ |
≥6000times@80%DOD,25℃ |
|
Communication Mode |
RS485/CAN |
RS485/CAN |
|
Charge Temperature Range |
0~60℃ |
0~60℃ |
|
Discharge Temperature Range |
-10℃~65℃ |
-10℃~65℃ |
|
Size(LxWxH) mm |
515×493×175 |
515×493×175 |
|
Net Weight (Kg) |
42 |
45 |
|
Package Size (LxWxH) mm |
550×523×230 |
550×520×230 |
|
Gross Weight (Kg) |
45 |
48 |

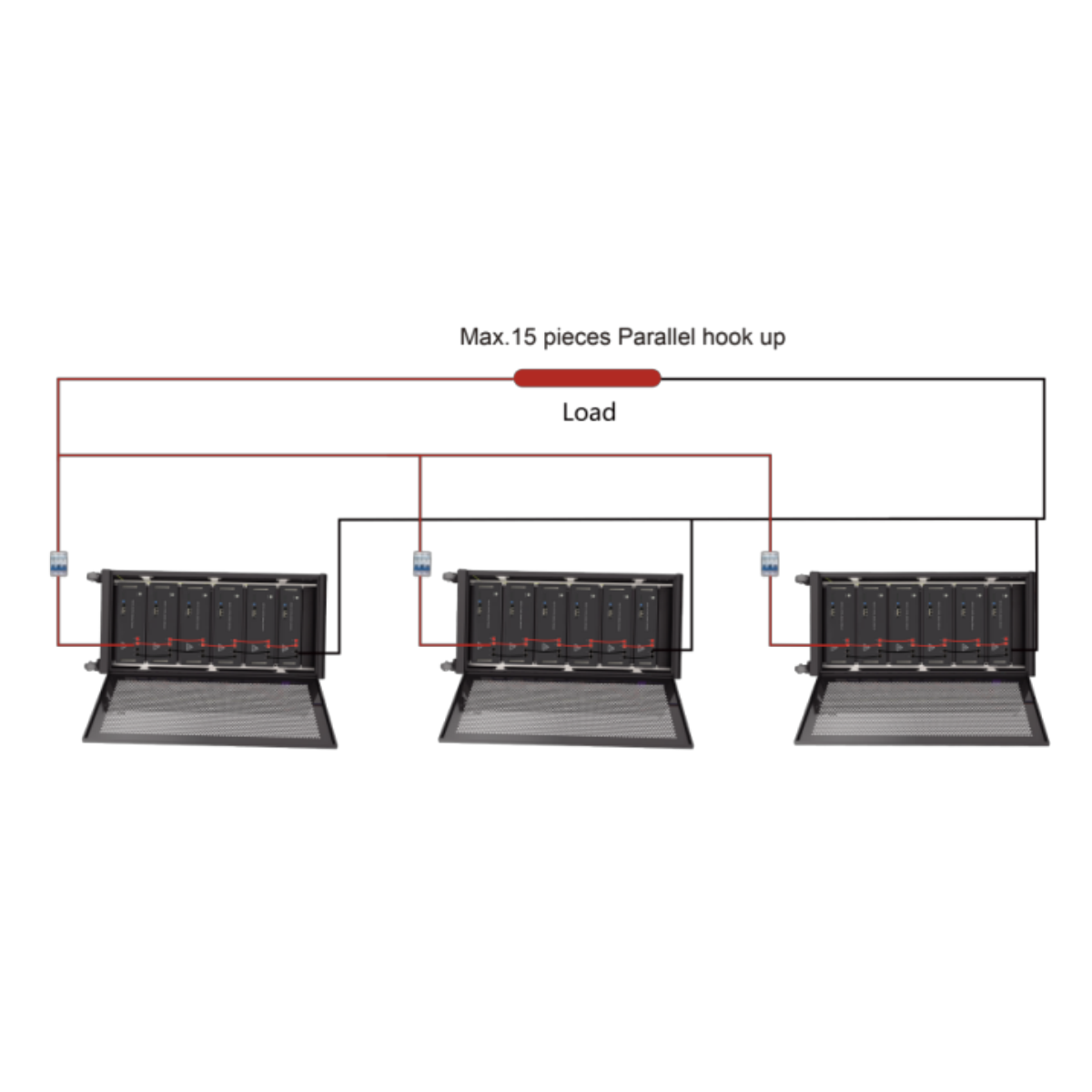

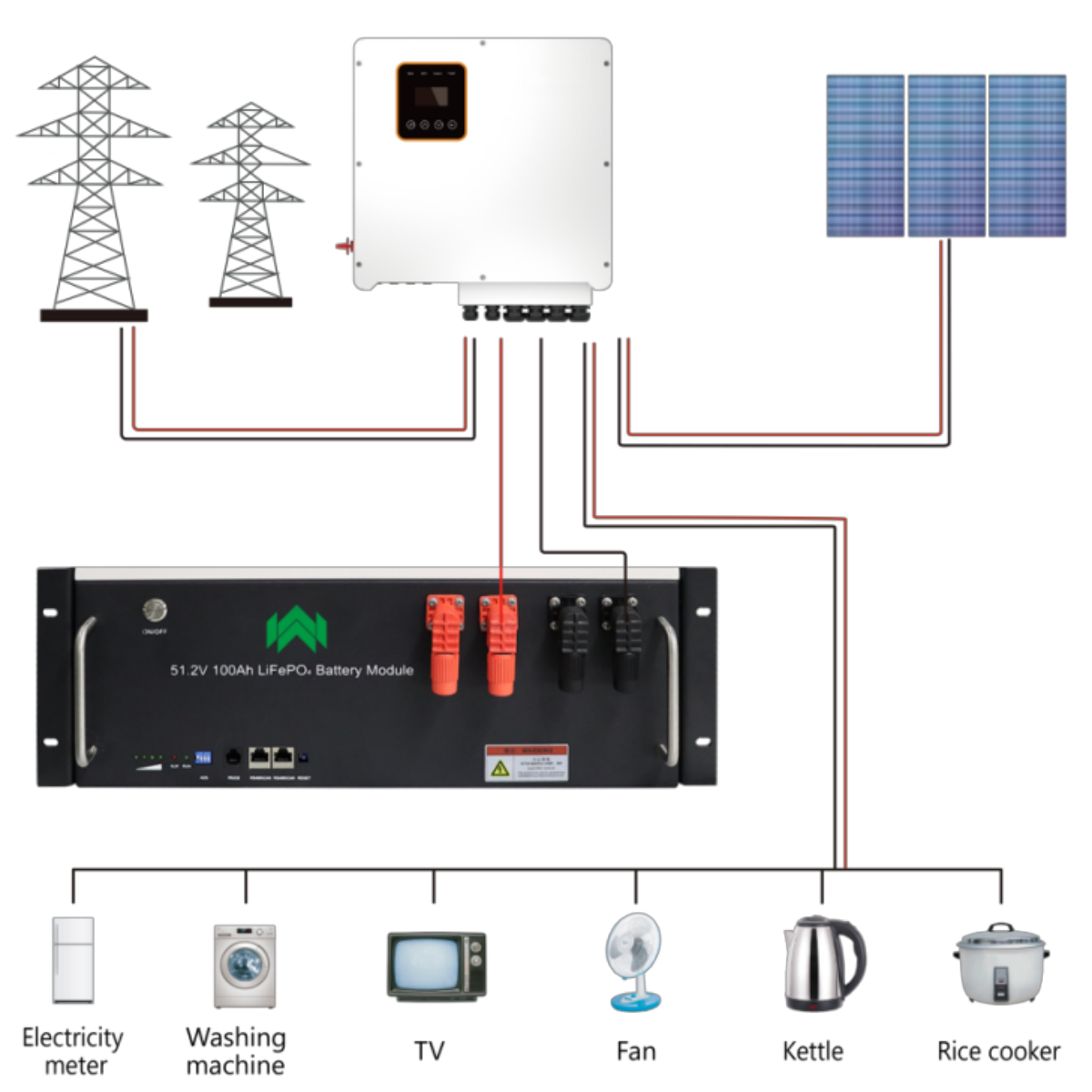

Connection Diagram

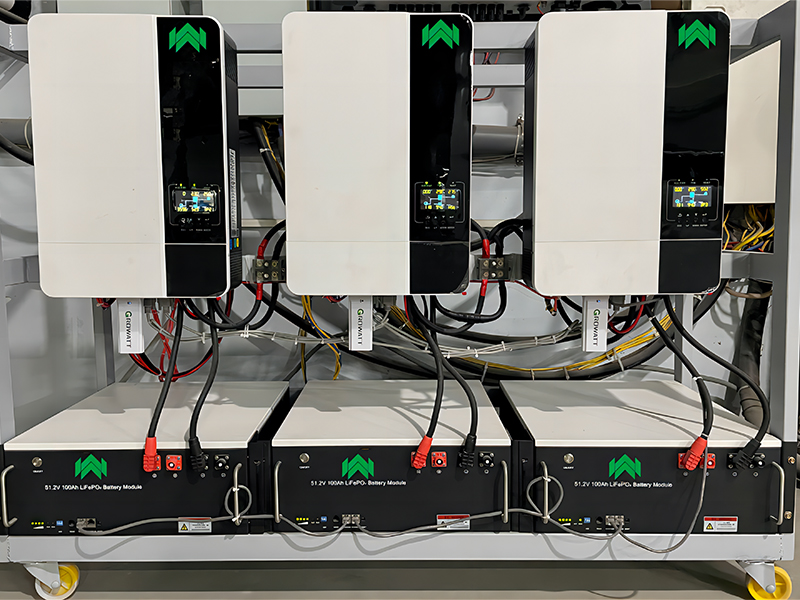

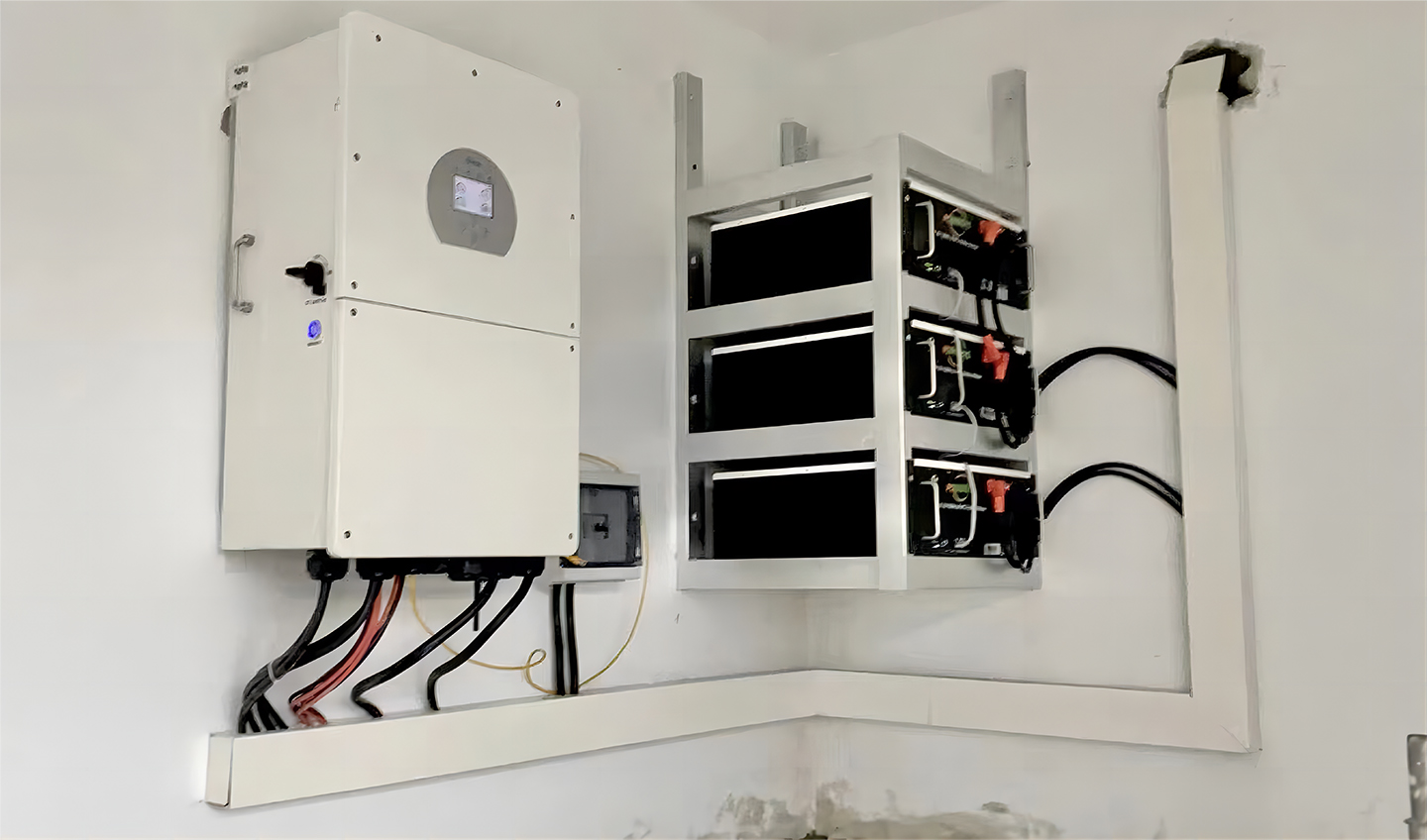

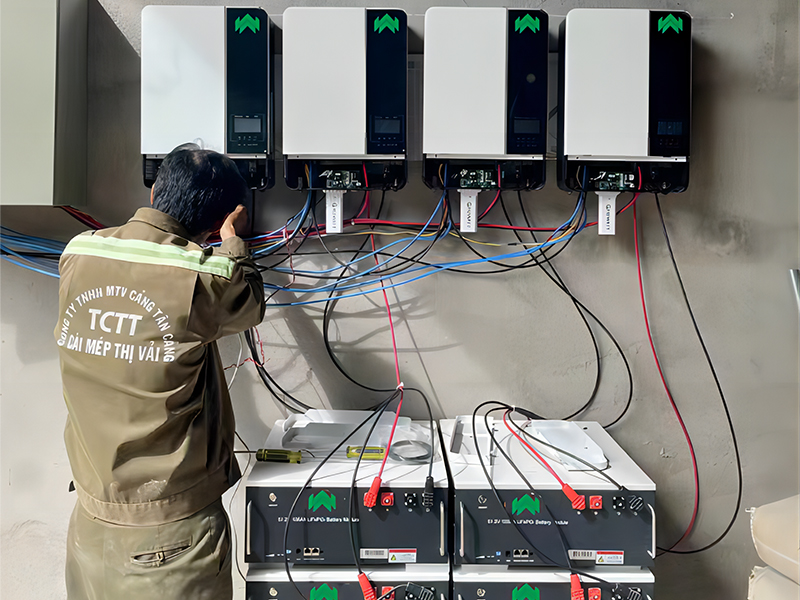

Case Information
