Lead-Acid Battery Alternative
Product Details Display
Product Introduction
Super long lifespan, small size, lighter weight, and a cycle life of up to 4000 times.
Safe and non explosive, capable of operating over a wide temperature range, and the working temperature ranges from -20 ℃ to 60 ℃.
Output terminals are convenient for transportation and has protective measures. It uses lead-acid battery output terminals for easy replacement.
Low self discharge, easy to adjust capacity.
It can be used in series and parallel externally, with a maximum of 4 series and 8 parallel, and a maximum of 48V battery usage.
It has a waterproof and explosion-proof plastic shell, IP67 rating.
This series of products has three capacity models, namely 100Ah, 120Ah, and 200Ah.
It can provide power for golf carts, RVs, submarines, etc. It can also be used as a home energy storage battery, providing power for street lights, testing equipment, security monitoring equipment, etc.
Features
1. Stable performance and long service life. The 12V LiFePO4 battery uses A-grade LiFePO4 cells to ensure excellent performance. The 12.8V Lithium iron phosphate battery has the characteristics of high output power and high utilization rate, and its internal battery structure is 4 series and 8 parallel. Compared to 12V lead-acid batteries, 12.8V LiFePO4 batteries are lighter and safer to use.
2. Small size, light weight, and easy to carry. The net weight of the 12.8V100Ah lithium battery is only 12.1kg, which can be easily lifted by an adult with one hand. 12.8V100Ah and 120Ah are both of the same size. When going out for a parade, the RV can be powered. It is very convenient to use and the best choice for carrying when traveling.
3. The product has good performance and a wide range of applications. Silver plated copper terminals. Good conductivity, anti-corrosion and anti-corrosion. Fireproof and waterproof shell material. The shell is made of flame-retardant material and IPX-6 waterproof ABS material to prevent water from entering the battery. 12.8V lithium batteries have the characteristic of high current fast charging and discharging, and are mainly used for solar energy storage systems and golf cart batteries.
Product Specification
| Description |
Parameters |
||
| Model |
P04S55BL |
P04S100BL |
P04S200BL |
| Array Mode |
4S |
4S |
4S |
| Nominal Energy (KWH) |
0.7 |
1.2 |
2.5 |
| Minimum Energy(KWH) |
≥0.7 |
≥1.2 |
≥2.5 |
| Nominal Voltage (V) |
12.8 |
12.8 |
12.8 |
| Charge Voltage (V) |
14.6 |
14.6 |
14.6 |
| Discharge Cut-off Voltage (V) |
10 |
10 |
10 |
| Standard Charging Current(A) |
10 |
20 |
40 |
| Max.Continuous Charging Current (A) |
50 |
100 |
200 |
| Max.Continuous Discharging Current (A) |
50 |
100 |
200 |
| Cycle Life |
≥4000times@80%DOD, 25℃ |
||
| Charge Temperature Range |
0~60℃ |
0~60℃ |
0~60℃ |
| Discharge Temperature Range |
-10℃~65℃ |
-10℃~65℃ |
-10℃~65℃ |
| Size(LxWxH) mm |
229x138x212 |
330x173x221 |
522x238x222 |
| Net Weight (Kg) |
~6.08 |
~10.33 |
~19.05 |
| Package Size (LxWxH) mm |
291x200x279 |
392x235x288 |
584x300x289 |
| Gross Weight (Kg) |
~7.08 |
~11.83 |
~21.05 |

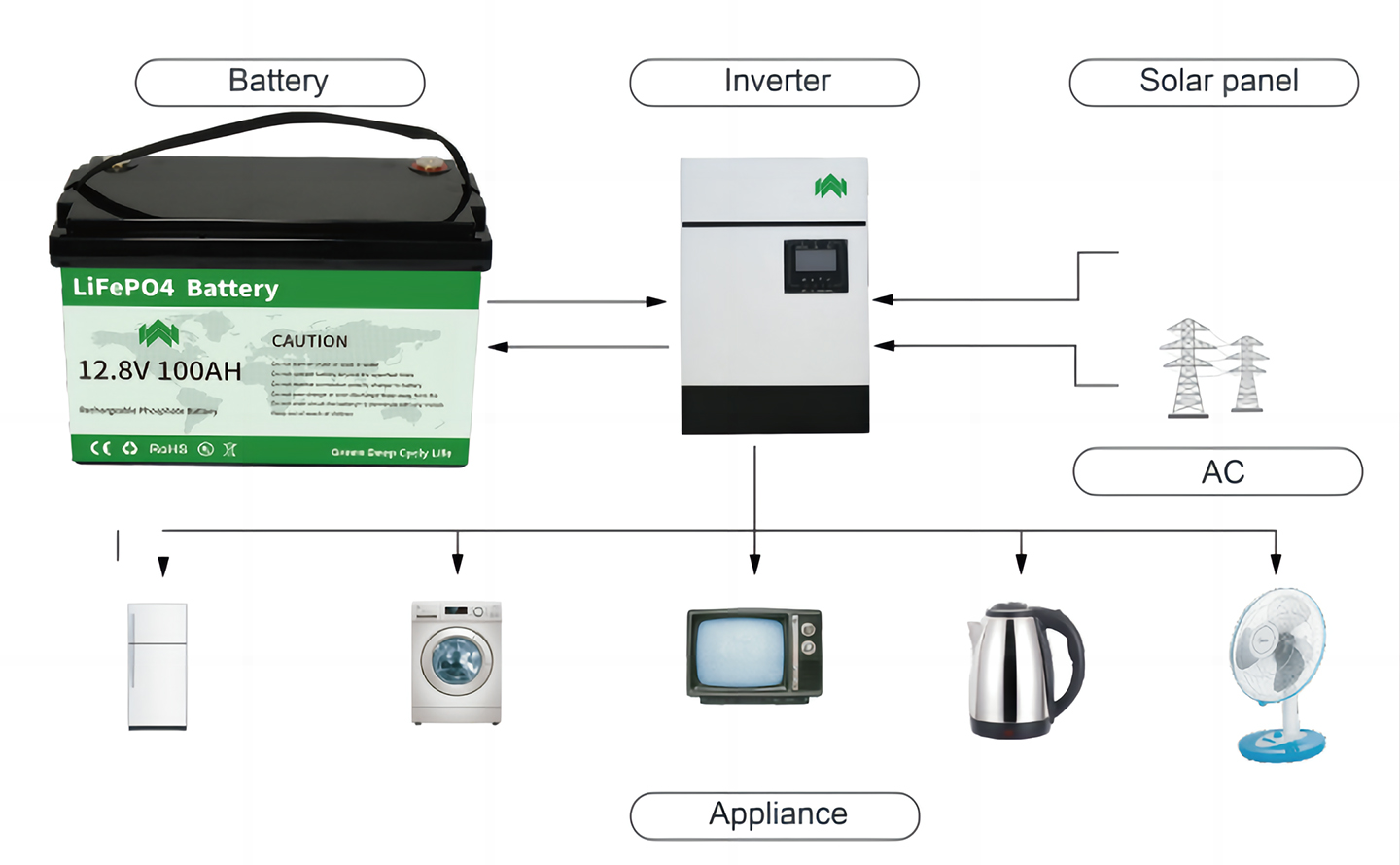

Connection Diagram
