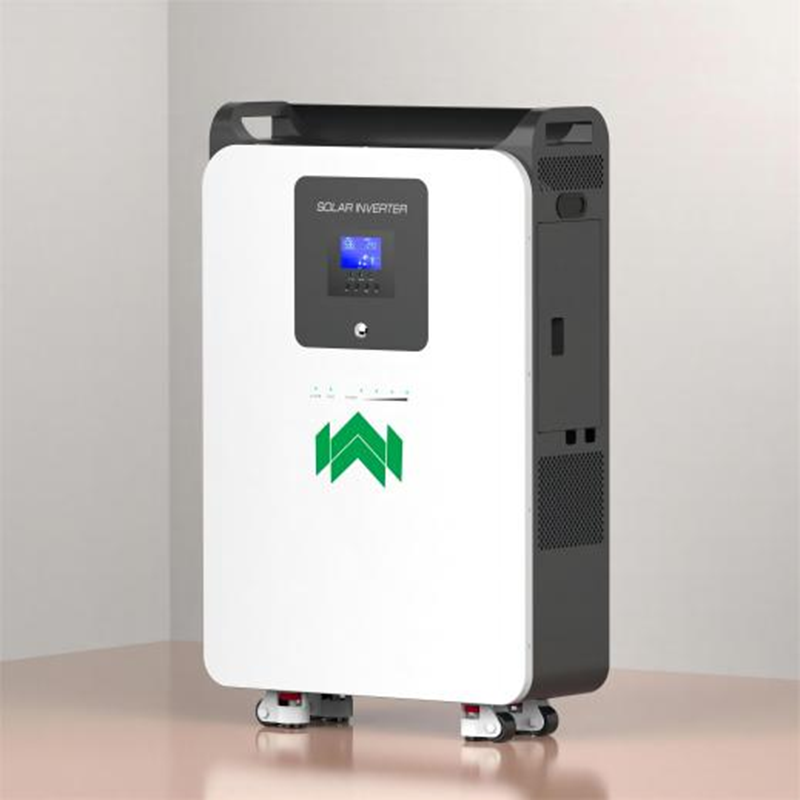

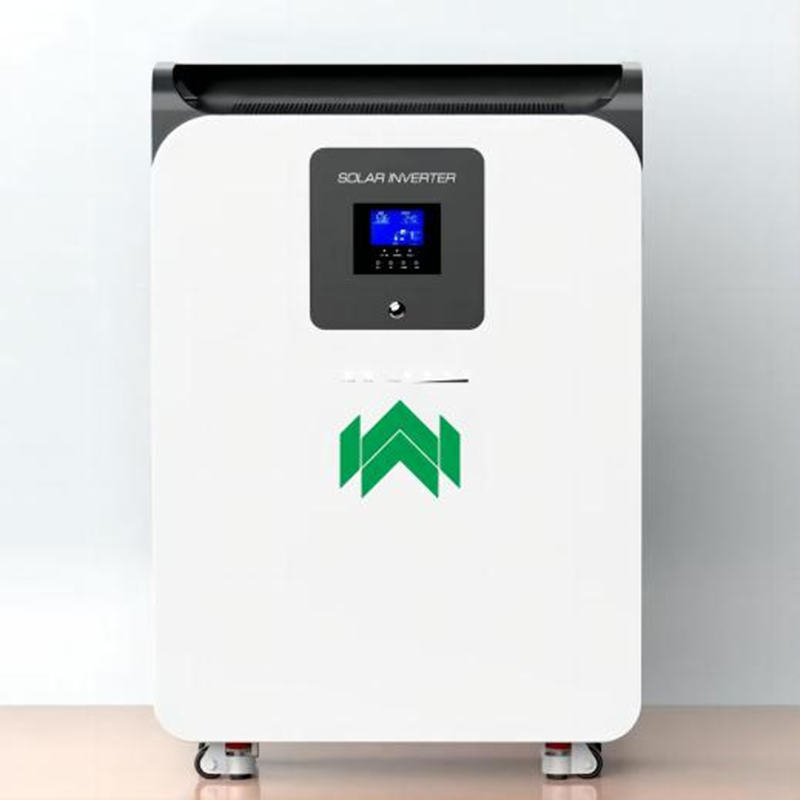

HS04 series battery

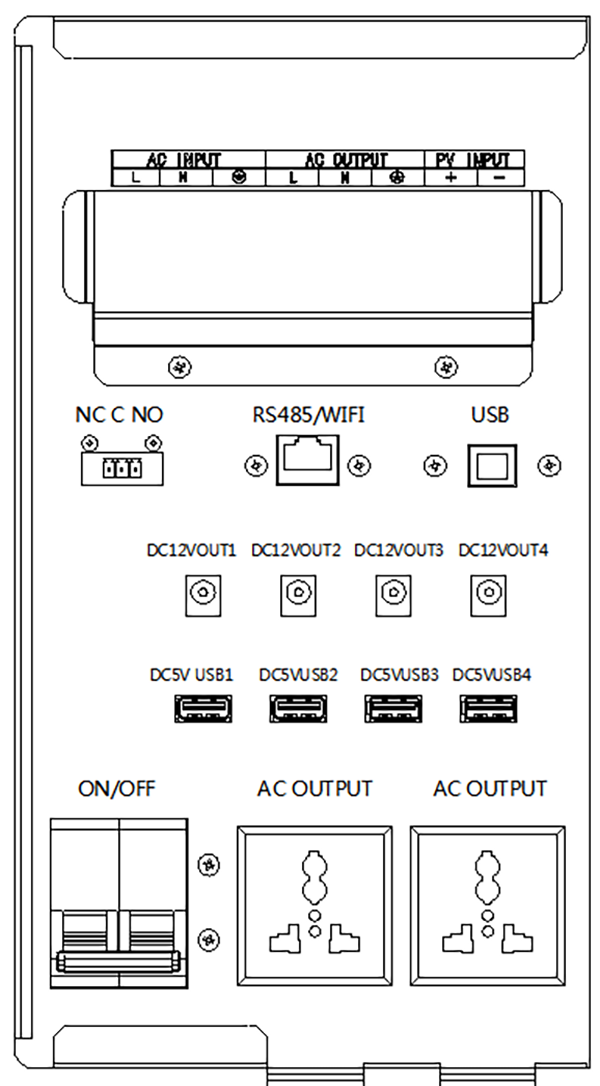

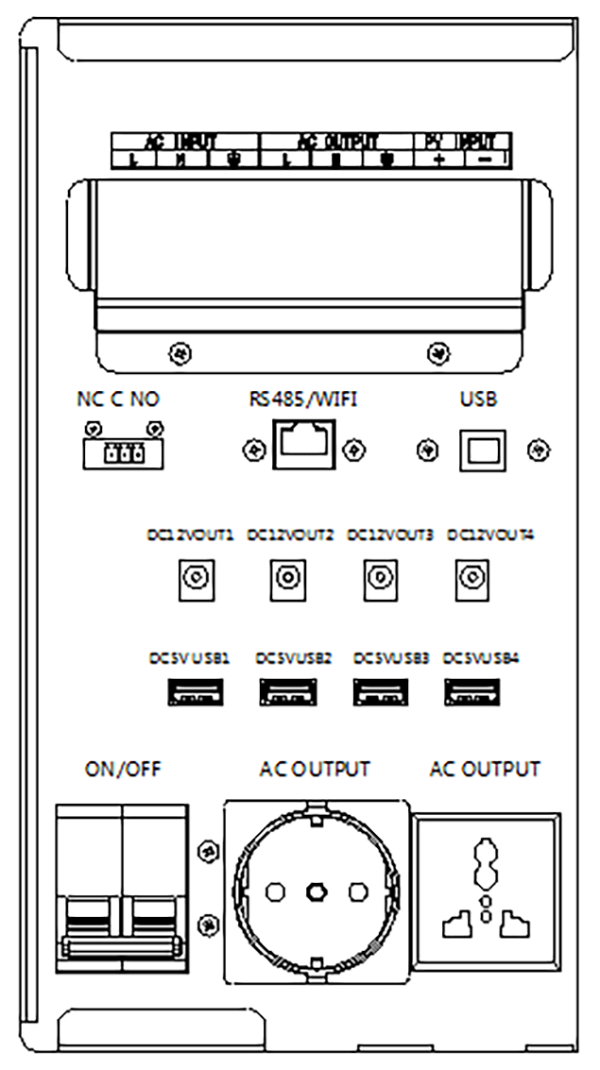

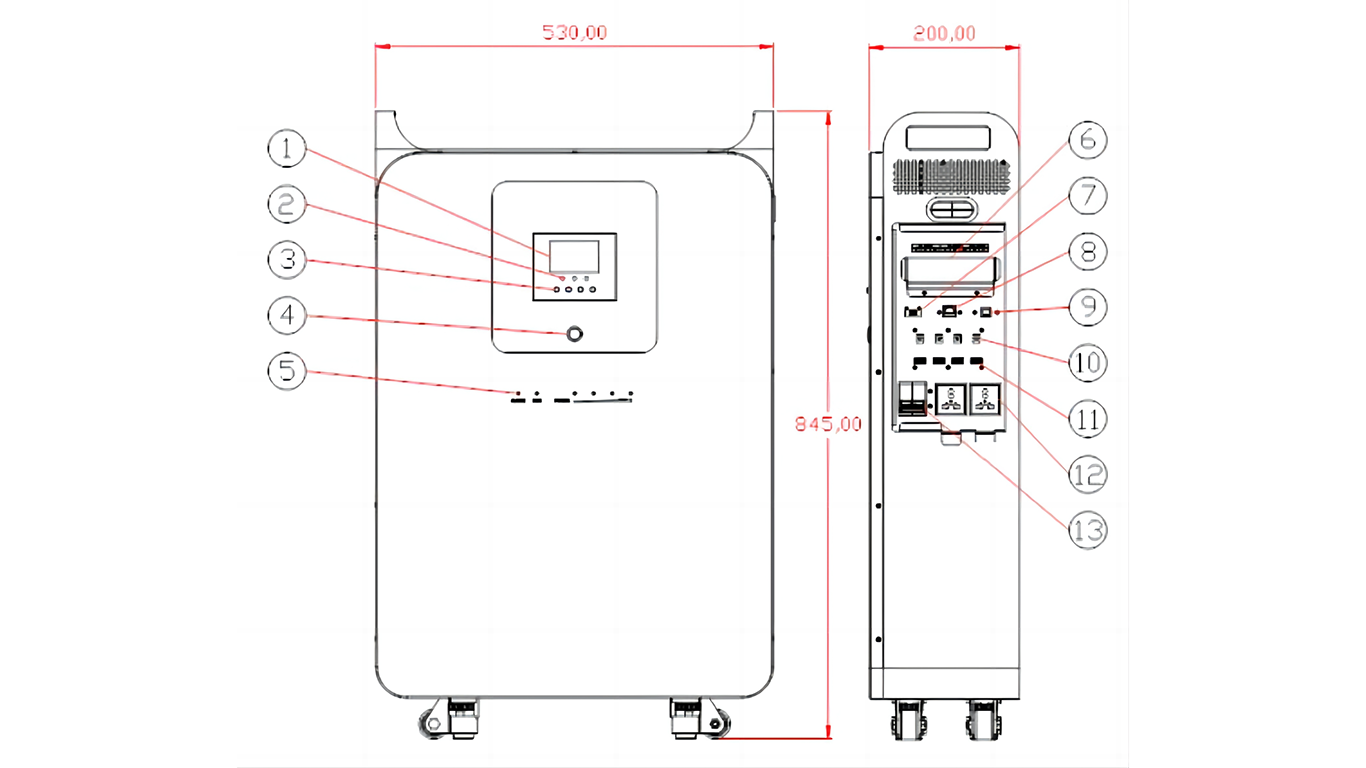

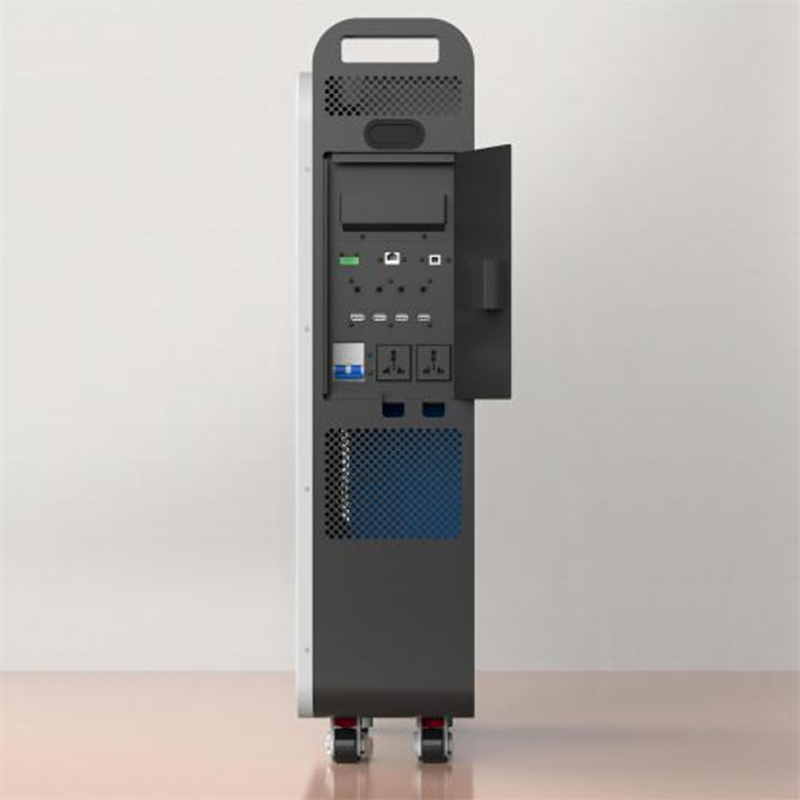

Product Details Display
|
1 |
LED Screen |
6 |
AC in/out, PV input |
11 |
5V-USB output |
|
2 |
Indicator Light |
7 |
dry junction port |
12 |
AC output |
|
3 |
Touch Button |
8 |
RS485 communication port WIFI |
13 |
breaker |
|
4 |
Switch |
9 |
USB communication port |
|
|
|
5 |
Battery Indicator |
10 |
DC12V output |
|
Product Introduction
♦ HS04 series is a new type of hybrid photovoltaic energy storage inverter control system integrating solar energy storage & mains charging energy storage and AC sine wave output.
♦ It adopts DSP control and advanced control algorithm, which has high response speed, high reliability and High industrial standards and other characteristics.
♦ There are four optional charging modes: solar only, mains priority, solar priority, and mains & solar; two output modes, inverter and mains, are optional to meet different application requirements.
Product Features
1. Adopt full digital voltage and current double closed-loop control, advanced SPWM technology, output pure sine wave.
2. It has two output modes of mains bypass and inverter output, and has the function of uninterrupted power supply.
3. There are 4 optional charging modes: solar only, mains priority, solar priority, hybrid charging.
4. LCD liquid crystal screen design, dynamic display system data and operating status.
5. It has the function of power saving mode to reduce the no-load loss.
6. The intelligent adjustable speed fan is used to dissipate heat efficiently and prolong the life of the system.
7. With multiple protection functions, 360°all-round protection.
8. It has complete short circuit protection, overvoltage and undervoltage protection, overload protection, feedback protection, etc.
Product Specification
| Model No. | FBC-HS04-048005-30560-145 | FBC-HS04-048005-30U60-145 | FBC-HS04-048005-50580-145 |
| Grid power mode | |||
| Rated inputvoltage | 220/230Vac | 110/120Vac | 220/230Vac |
| Input voltagerange | (170Vac~280Vac) ±2%(90Vac-280Vac)±2% | (90Vac~140Vac)±2% | (170Vac~280Vac)±2%(90Vac-280Vac)±2% |
| frequency | 50Hz/ 60Hz (auto detect) | ||
| Frequency Range | 47±0.3Hz ~ 55+0.3H2(50Hz)57±0.3Hz ~ 65+0.3Hz (60Hz) | ||
| Overload/shortcircuit protection | breaker | ||
| efficiency | >95% | ||
| Conversion time(bypass and
inverter) |
10ms (typical value) | ||
| Ac feedbackprotection | YES | ||
| Maximum bypassoverload current | 30A | 40A | 40A |
| lnverter mode | |||
| Output voltagewaveform | pure sine wave | ||
| Rated outputpower | 3300VA | 3000VA | 5000VA |
| Rated outputpower | 3300W | 3000W | 5000W |
| Power Factor | 1 | ||
| Rated outputvoltage | 230Vac | 120Vac | 230Vac |
| output voltageerror | ±5% | ||
| output frequencyrange | 50Hz ±0.3Hz 60Hz 土 0.3Hz | ||
| efficiency | >92% | >91% | >92% |
| overload protection | (110%<load<125%)±10%: report an error
and turn off the output after 5 minutes; (125%<load<150%)土 10%: report an error and turn off the output after 10 seconds; Load>150% ±10%: report an error and turn off the output after 5 seconds out; |
(102%<load<110%)±10%: report error and
wait for 5 minutes After closing the output; (110%<load<125%)土 10%: report error and wait for 10 seconds After closing the output； Load>125% ±10%:report an error and turn off the output after 5 seconds out; |
(102%<load<125%)±10% report error and wait for 5 minutes
After closing the output(125%<load<150%)土10%: report error and wait for 10 seconds After closing the output；Load>150% ±10%:report an error and turn off the output after 5 seconds out; |
| peak power | 6000VA | 6000VA | 10000VA |
| Loaded motor capacity | 2HP | 2HP | 3HP |
| Output short circuit protection | breaker | ||
| Bypass Breaker Specifications | 30A | 40A | 40A |
| battery voltage range | 40.0Vdc~60Vdc±0.6Vdc (undervoltage warning/shutdown voltage/overvoltage warning/overvoltage recovery...LCD screen can be set) | ||
| Battery Type | lithium battery | ||
| Battery power | 5120Wh | ||
| power saving mode | load≤50W | ||
| Grid charge | |||
| Max Charge current | 60A | 40A | 60A |
| Charge current error | ±5Adc | ||
| Short circuitprotection | Circuit breakers and blown fuses | ||
| Breaker | 40A | ||
| Overcharge protection | Alarm and turn off charging after 1 minute | ||
| Solar charging | |||
| Maximum PV opencircuit voltage | 145Vdc | ||
| PV Working voltage range | 60-145Vdc | ||
| MPPT voltage range | 60-115Vdc | ||
| Max input power | 3400W | 4400W | |
| Solar charge | 0-60A | 0-80A | |
| Charging short circuit protection | fuse | ||
| Wiring protection | reverse polarity protection | ||
| Maximum hybrid charging current (PV+AC) | |||
| Maximum hybrid charge stream(configurable) | 0-120A | 0-100A | 0-140A |
| Other specifications | |||
| working temperature | -15°C to 55°C | ||
| storage temperature | -25°C~60°C | ||
| humidity range | 5% to 95%(three anti-paint protection) | ||
| noise | ≤60dB | ||
| cooling | Forced air cooling, adjustable wind speed | ||
| communication | CAN/USB/RS485(WiFi/GPRS)/dry node control | ||
| size (L*W*D) | 845*530*200mm | ||
| weight | About 60kg | ||

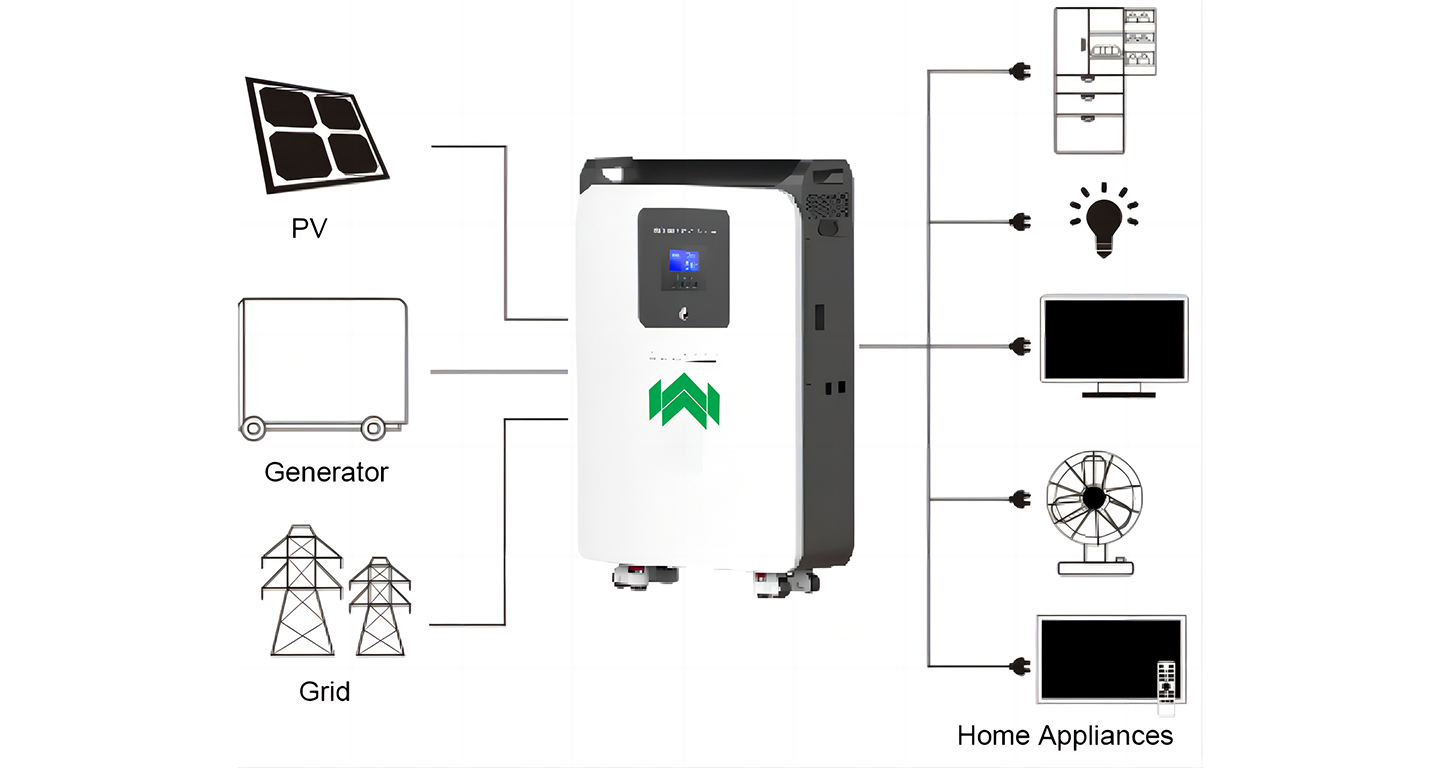

Connection Diagram
