Horizontal all-in-one machine
Product Details Display
Product Introduction

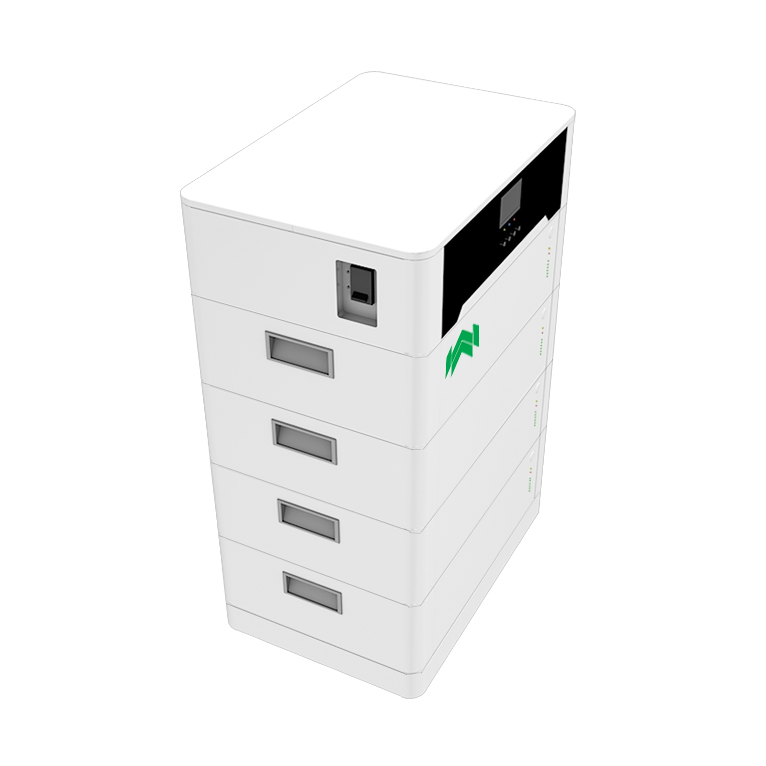

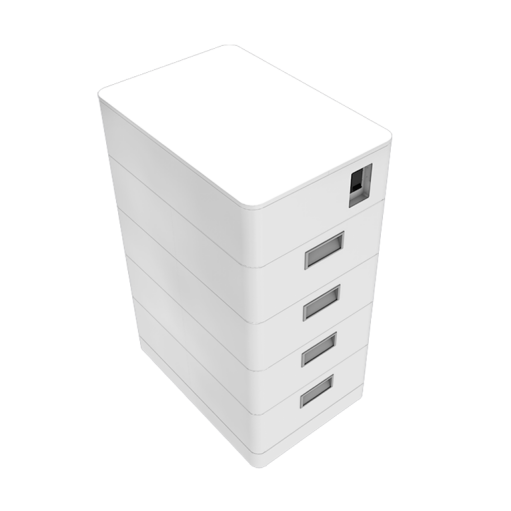

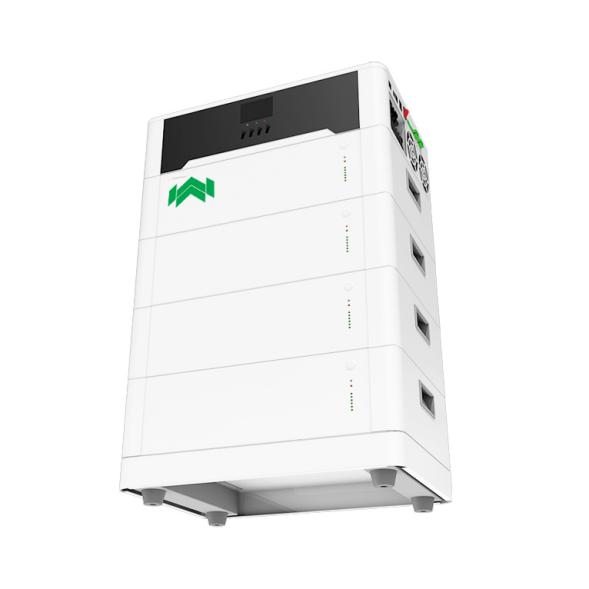

Horizontal all-in-one machine: paired with a 5Kw off grid inverter, with a single module of 2.5 kWh (51.2V 50Ah). Up to 8 modules can be stacked. Achieve 20 kilowatt hours of electricity. The inverter is guaranteed for three years and the battery is guaranteed for five years.
Product Features
1.Designed for Families：
（1）Support Off-grid / Hybrid / On-Grid output
（2）Multiple charge and discharge modes available
2.Safety
（1）High quality LiFePO4 Cells
（2）Smart Lithium ion battery management solutions
3.Easy to Upscale
（1）Up to four batteries in parallel expand to 20.48kWVh
（2）Up to two systems in parallel with double storage & output
4.Easy to Install
（1）No matching and commissjo1ning required, easy to install
（2）Plug-and-play,eliminate the clutter of wires
5.User Friendly
（1）Get started quickly and use it instantly
（2）Min. dimension, saving space in the home
6.Intelligence
（1）Support Wif1 view rest-time data through App
（2）Large LCD screen with real-time data
Product Specification
|
Inverter Module |
PC-AlOS05C-220 |
Can Be Set |
|
Output |
||
|
Rated Output Power |
5,000W |
|
|
Max. Peak Power |
10,000VA |
|
|
Load Capacity of Motor |
4HP |
|
|
Wave Form |
PSW (Pure Sine Wave) |
|
|
Rated Output Voltage |
220Vac (single-phase) |
√ |
|
Max. Parallel Capacity |
2units (up to10kW) |
√ |
|
Output Mode |
Off-grid / Hybrid / On-grid |
√ |
|
Solar Input |
||
|
Solar Charge Type |
MPPT |
|
|
Max. Solar Array Power |
5,500W |
|
|
Max. Solar Open Circuit Voltage |
500Vdc |
|
|
Grid / Generator Input |
||
|
Input Voltage Range |
90~280Vac |
|
|
Bypass Overload Current |
40A |
|
|
Battery Charging |
||
|
Max. Solar Charging Current |
100A |
√ |
|
Max. Grid / Generator Charging Current |
60A |
√ |
|
General |
||
|
Dimension |
130x480x330mm |
|
|
Weight(Kg) |
≈13Kg |
|
|
Battery Module |
PC-AIOS2.5B |
Can Be Set |
|
Battery Power |
2.56kWh |
|
|
Rated Voltage |
51.2V |
|
|
Rated Capacity |
50Ah |
|
|
Battery Type |
Prismatic LFP |
|
|
Cycling Life Span |
≥6000(80%DOD,0.5C,25°C) |
|
|
Max. Parallel Capacity |
4units (up to10.54kWh ) |
√ |
|
Dimension |
135x480x330mm |
|
|
Weight(Kg) |
~25Kg |
|
|
Standard |
UN38.3,MSDS,UL1973,IEC62619:2017.EN IEC61000-3-2、EN IEC61000-6-1ROHS |
|

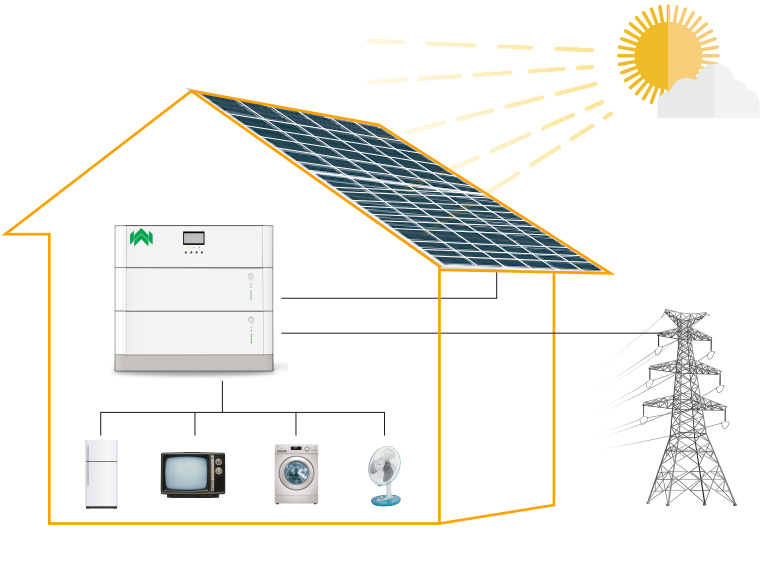

Connection Diagram
