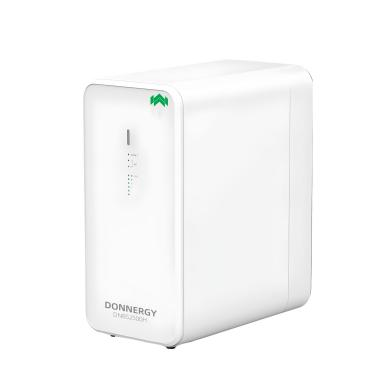

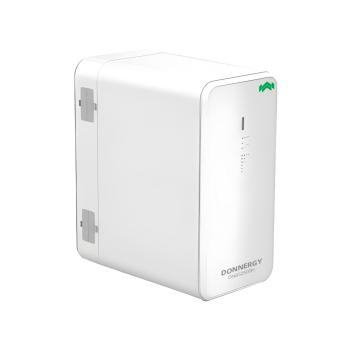

Balcony Solar station
Product Introduction
2.Easy Plug-and-play lnstallation, compatible with 99% of solar panels and micro inverters in the market.
3.Support synergistic micro-inverters for string formation, expand capacity and support greater output power at the same time.
4.Lithium iron phosphate battery, 7-fold safety protection, 6000+ cycle times, 10 years lifespans.
5.Original laminated low-voltage large batteries, ultra-low self-consumption.
6.Fanless and noiseless design, lP65 waterproof, high temperature resistant and fireproof materials, fully satisfy the balcony all-weather field.
7.Smart APP online real-time monitoring, multiple modes can be selected to facilitate multi-scenario application switching.
Features
1.EXPANDABLE CAPACITY:2240Wh~6720Wh
2.5-MINUTE INSTALLATION:Just Plug and Play
3.HIGH POWER:1000W PV Input/800W DC Output
4.HIGH SAFETY:LiFePO4 Battery/IP65 Waterproof/Over 10 Years Lifespan/Lifecycle 6000+Times
5.USE LESS GRID POWER:Save on Energy Costs
6.SMART REMOTE CONTROL:Real-Time Energy Analysis on APP
Product specification
|
Model |
DNBS2500H |
|
|
GENERAL |
Capacity |
2240Wh |
|
Cell Chemistry |
LiFePO4 |
|
|
Lifecycle |
6000+ Cycles to 80% Capacity |
|
|
Storage Temp. |
14°F~113F(-10°C~45°C) |
|
|
Operating Temp. |
14°F~104°F(-10°C~40C |
|
|
Material |
ABS + PC / Metal |
|
|
Weight |
20±0.5kg |
|
|
Dimensions |
350x295x175mm |
|
|
Battery Management System |
OVP, UVP, OCP, SCP OTP, UTP, etc |
|
|
Wireless |
BT5.2 + WIFI2.4G |
|
|
MC4x2 PV INPUT |
Power |
500Wx2Max |
|
Voltage Range |
12V~59V |
|
|
Max.Input Current |
10A |
|
|
MC4x2 OUTPUT |
Power |
400Wx2 Max |
|
Voltage Range |
42V-50.4V |
|
|
Max. Output Current |
11.9A |
|
|
Model |
DNPA2500H |
|
|
GENERAL |
Capacity |
2240Wh |
|
Cell Chemistry |
LiFePO4 |
|
|
Nominal Current |
50A |
|
|
Lifecycle |
6000+ Cycles to 80% Capacity |
|
|
Storage Temp. |
-4F~140F(-20°C~60°C) |
|
|
Operating Temp. |
32°F~122°F(0°C~50°C) |
|
|
Material |
ABS + PC / Metal |
|
|
Weight |
18±0.5kg |
|
|
Dimensions |
350*295*175mm |
|
|
Battery Management System |
OVP, UVP,OCP, SCP,OTP,UTP, etc. |
|
|
INPUT |
Battery Voltage Range |
44.8V |
|
Charge Voltage |
52.5V |
|
|
Charge Current |
50A |
|
|
OUTPUT |
Discharge Current |
100A |
|
DoD |
90% |
|
