16S3P-51.2V300Ah Mobile Battery
Features
1.Convenient:Wall mounted battery&compact design, ease of installation.
2.Compatible:Compatible with multiple inverters;Multiple communication;interfaces RS232, RS485, CAN.
3.Compliant:Ip21 Protection;indoor application.
4.Scalable: Use of parallel connection;from 2 to 5 modules.
5.Sufficient :High energy density, 110Wh/kg.
6.Safe :Multiple protection;LiFePO4 material, safe and long life.

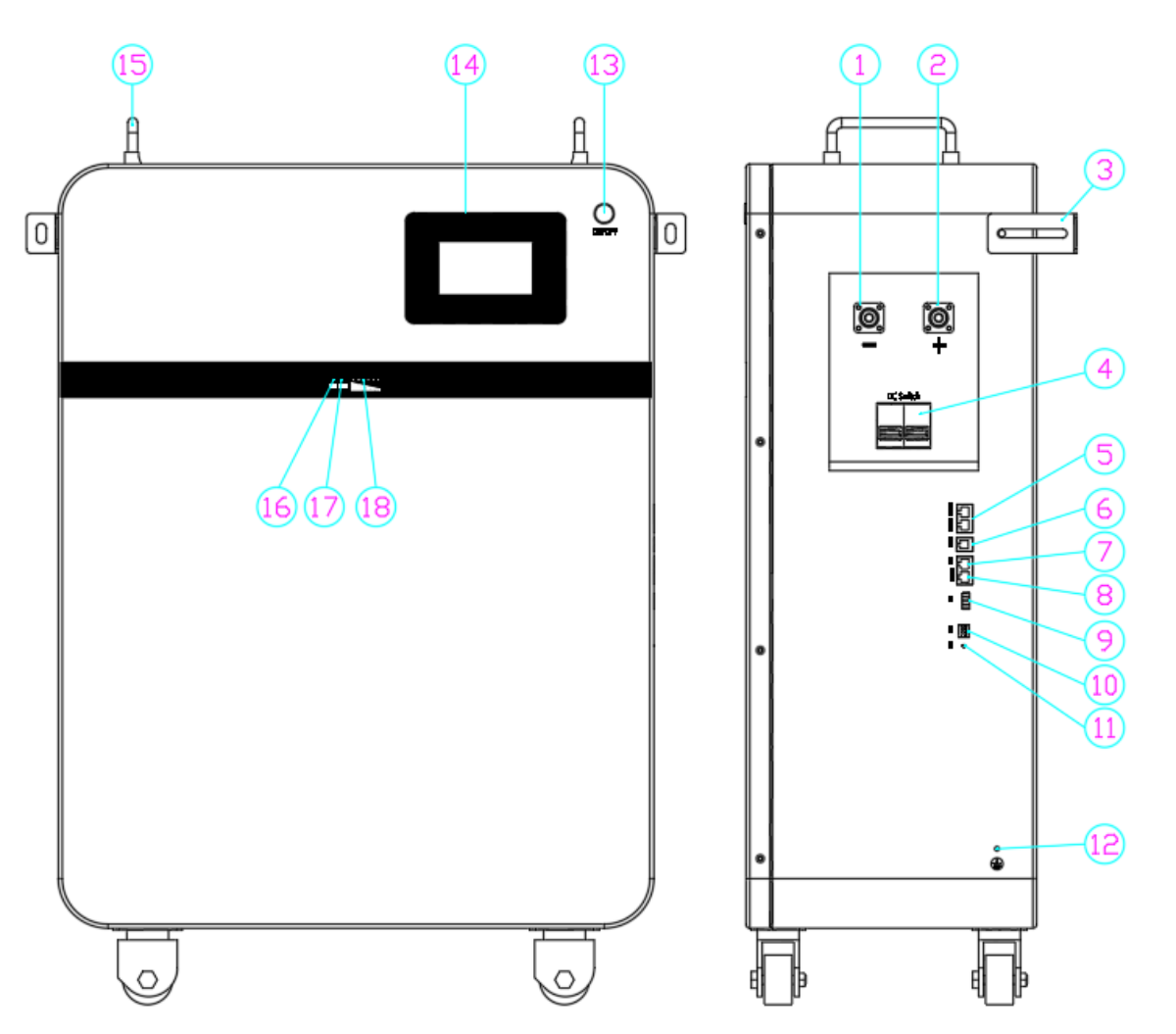

Product Details Display
|
No. |
Description |
Silk-screen |
Remark |
|
1 |
Output terminal |
P+ |
Output terminal |
|
2 |
Output terminal |
P- |
Output terminal |
|
3 |
L-type fixing bracket |
|
|
|
4 |
Air switch |
DC Switch |
|
|
5 |
RS485 Port |
RS485B |
RS485 and Battery connection port |
|
6 |
RS232 Port |
RS232 |
RS232 and computer connection port |
|
7 |
CAN Port |
CAN |
CAN and inverter connection port |
|
8 |
RS485 Port |
RS485BA |
RS485 and inverter connection port |
|
9 |
DRY port |
DRY |
DRY port |
|
10 |
Dial switch |
ADS |
Set the address |
| 11 |
port Reset button |
RST |
For reset the batter |
|
12 |
grounding |
|
|
|
13 |
Power Switch |
ON/OFF |
Power Switch |
|
14 |
LCD |
|
|
|
15 |
Handle |
|
|
|
16 |
LED |
RUN |
Operation indicator |
|
17 |
LED |
ALM |
Alarm indicator |
|
18 |
LED |
CAPACITY |
Capacity indicator |
Parameter information
| PERFORMANCE SPECIFICATIONS | ||
|
Nominal Voltage |
51.2V |
|
|
Cell model/Configuration |
3.2V100Ah(ANC)/16S3P |
3.2V100Ah(ANC)/16S4P |
|
Capacity(Ah) |
300AH |
400AH |
|
Rated Energy(KWH) |
15.36KWH |
20.48KWH |
|
Usable Energy(KWH) |
13.82KWH |
18.43KWH |
|
Max.Charge/Discharge Current(A) |
200A |
|
|
Voltage Range(Vdc) |
48-56.5V |
|
|
Scalability |
Up to 5 parallel |
|
|
Communication |
RS232-PC,RS485(B)-BAT RS485(A)-Inverter,CAN-Inverter |
|
|
Cycle Life |
6000cycles@25℃，90% DOD，60%EOL |
|
|
Design Life |
10 Years(25℃) |
|
| MECHANICAL SPECIFICATIONS | ||
|
Weight(Approx)(KG) |
155kg |
187kg |
|
Dimension(H/W/D)(mm) |
860*600*295mm |
|
|
Installation Mode |
Flat ground |
|
|
IP Grade |
IP21 |
|
| SECURITY AND CERTIFICATION | ||
|
Safety(Pack) |
UN38.3,MSDS |
|
|
Safety(Cell) |
UN38.3MSDSIEC62619.CEUL1973UL2054 |
|
|
Protection |
BMS,Breaker |
|
| ENVIRONMENTAL SPECIFICATIONS | ||
|
Operating Temperature(C) |
Charge: 0~55;Discharge:-20C-60℃ |
|
|
Altitude (m) |
≤2000 |
|
|
Humidity |
≤95%(Non-condensing) |
|
Specification Details
|
Model |
Product Title |
Product Size |
Net Weight(KG) |
Package Size(MM) |
Gross Weight(KG) |
|
16S3P(51.2V300Ah) |
15.36KWh |
860Lx600Wx295H |
≈155 |
1030Lx708Wx400H |
≈179 |
|
16S4P(51.2V400Ah) |
20.48KWh |
860Lx600Wx295H |
≈187 |
1030Lx708Wx400H |
≈211 |
