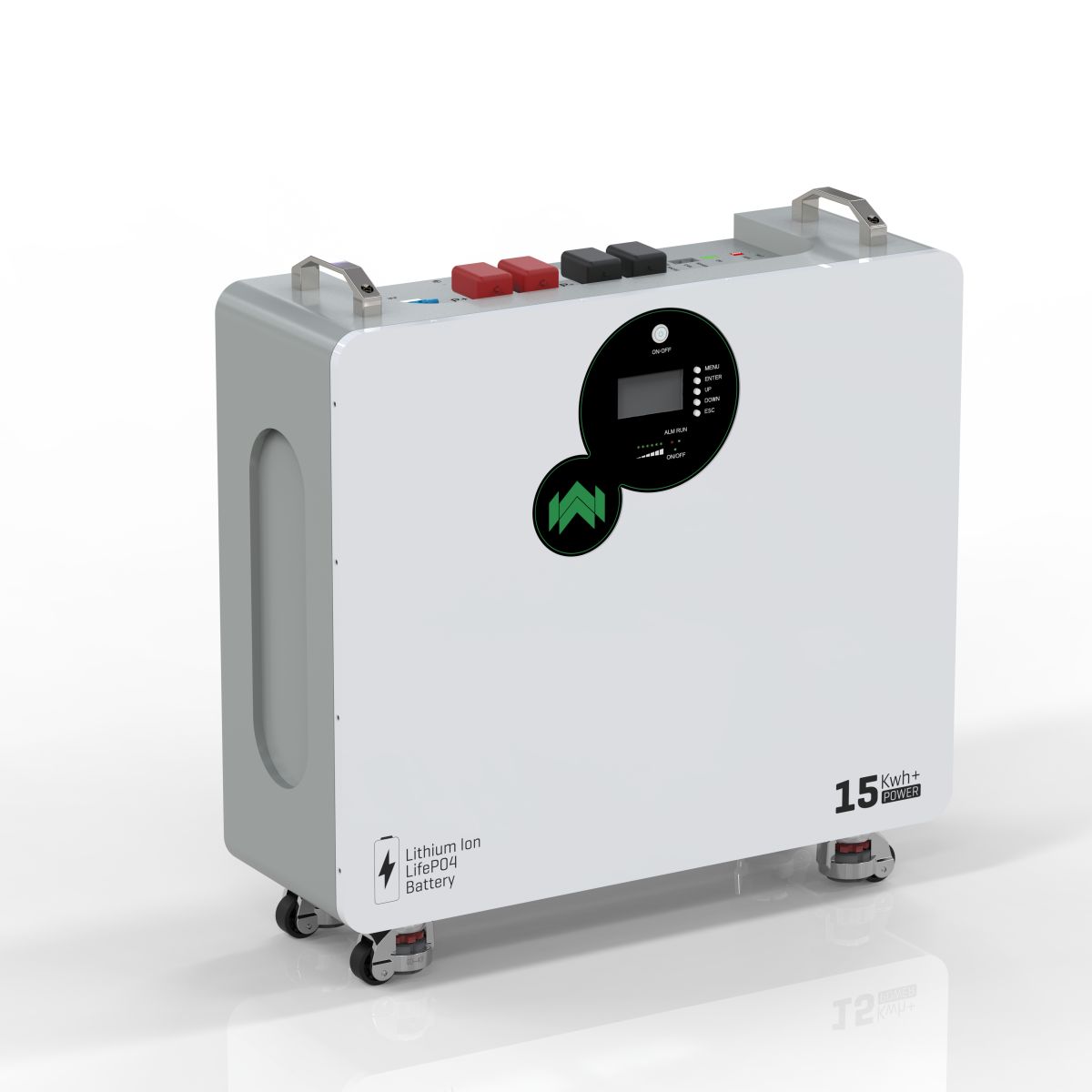

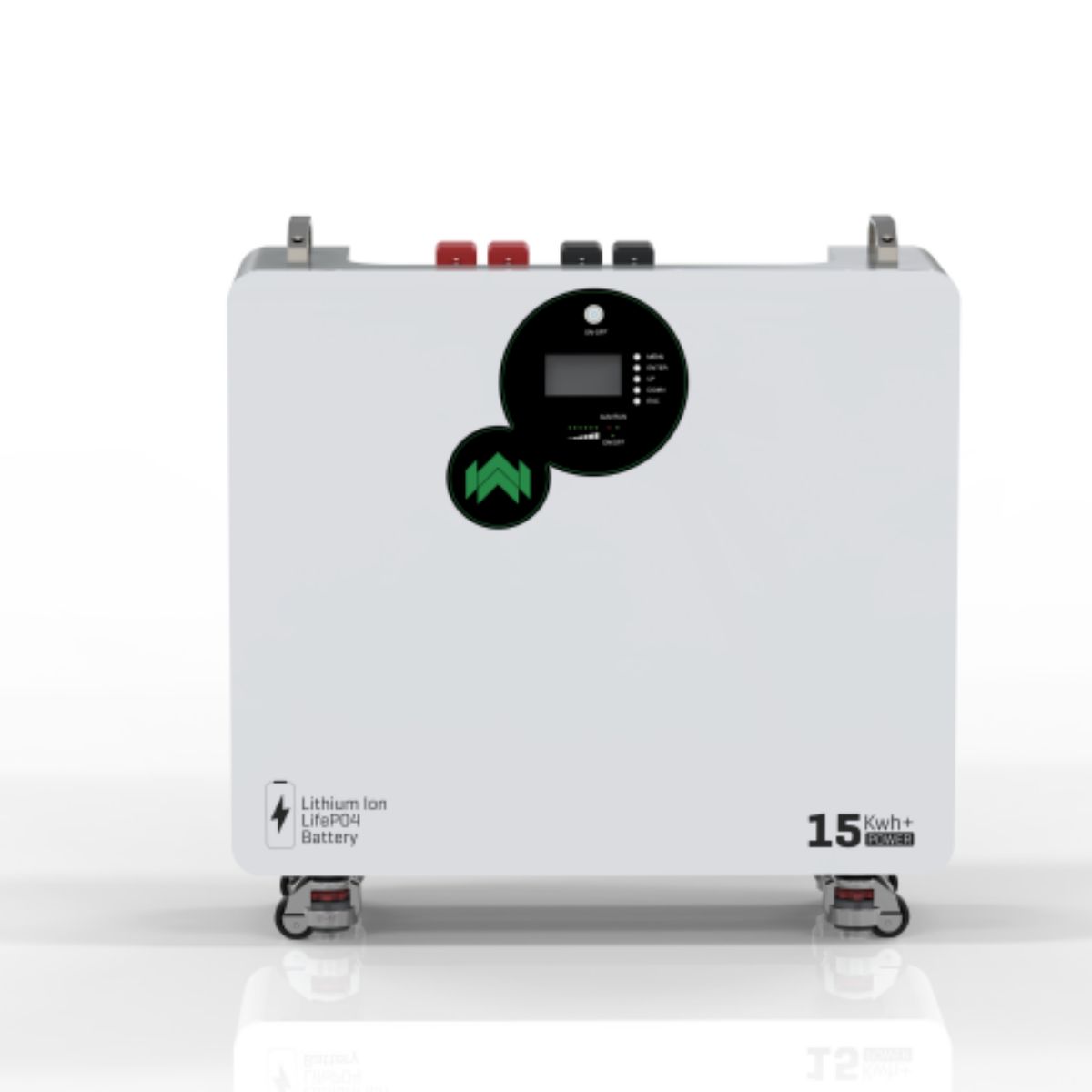

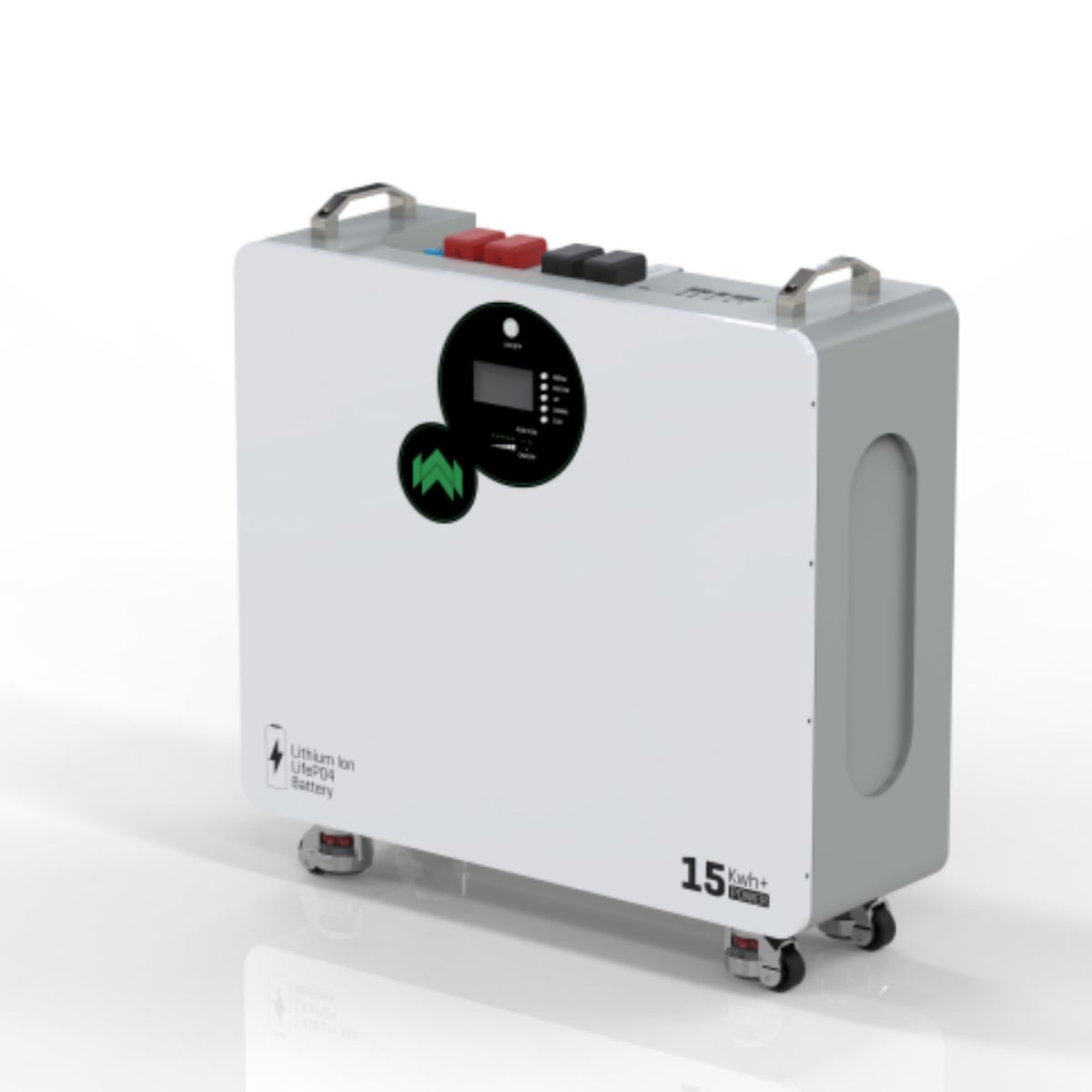

15kWh LiFePo4 Battery
Product Introduction
15kWh wall-mounted LiFePO4 battery,designed for residential energy storage,stylish design and supports wall-mounted installation.
A Type of deep cycle and high capacity LFp battery with improved safety, long lifespan, and Worryfree user experience. Using Fully New A grade LiFePO4 Cells ,and fully quality inspected beforeshipment , battery lifespan can be over 10 years.Built in intelligent and reliable BMs, Support all.round monitoring of battery status, Multiple protections to ensure the safety for every user.With 1 5kWh for a single unit and max, 15 units in parallel upto 225kWh energy storage capacity , it canmeet most ofthe household electricity demand. Get ready with our battery for a fully charged life .
Features
Product specification
| ltem | Parameter |
| Nominal Voltage | 51.2V |
| Working voltage | 43.2-57.6V |
| Nominal capacity | 280AH |
| Energy | 15360WH |
| Communication | CAN/RS485 |
| Resistance | ≤45 mΩ @ 50% SOC |
| Efficiency | >96% |
| Module parallel | Up to 15 packs |
| Recommended Charge Current | 75A |
| Max Charge current | 120A |
| Recommended Charge Voltage | 57.6V |
| BMS Charge Cut-off Voltage | 58.4 V(3.65V/Cell) |
| Balancing Starting Voltage | |
| Max Continuous Discharge Current | 150A |
| Peak Discharge Current | 160 A (1s) |
| BMS Discharge Cut-off Voltage | 43.2V (1s) (2.7V/Cell) |
| Recommended Discharge DOD | 90% |
| Dimensions (LxWxH) | 690*580*240mm |
| Reference Weight | 120KG |
| Terminal Type | Screw Connector |
| Case Material | SPCC |
| Protection Class | IP21 |
| Discharge Temperature | -20-60 |
| Charge Temperature | 0-45 |
| Storage Temperature | 10-25 |
| BMS High Voltage Cut-off | 65 |
| Scalability | Up to 15Units ,Suggest 8 Units Max |
| Alarms | Over Charge/Over Discharge/Over Current/Over Temperature/Short Circuit |
| Monitoring and Protection | Each Battery has Smart BMS,Breaker |
| Compatible Inverters | DEYE/SOLIS/Growatt/LUXPOWER/Voltronics/Goodwe/SMA/Victron/MEGAREV/SOROTEC/MUST/SUNWAVE etc. |
| Certification | CE/UN38.3/MSDS |
Product Application
Off-grid,Hybrid, Back-up, Peak Shaving, and Virtual Power Plant Home Appliances, Uninterrupted
Power Supply
