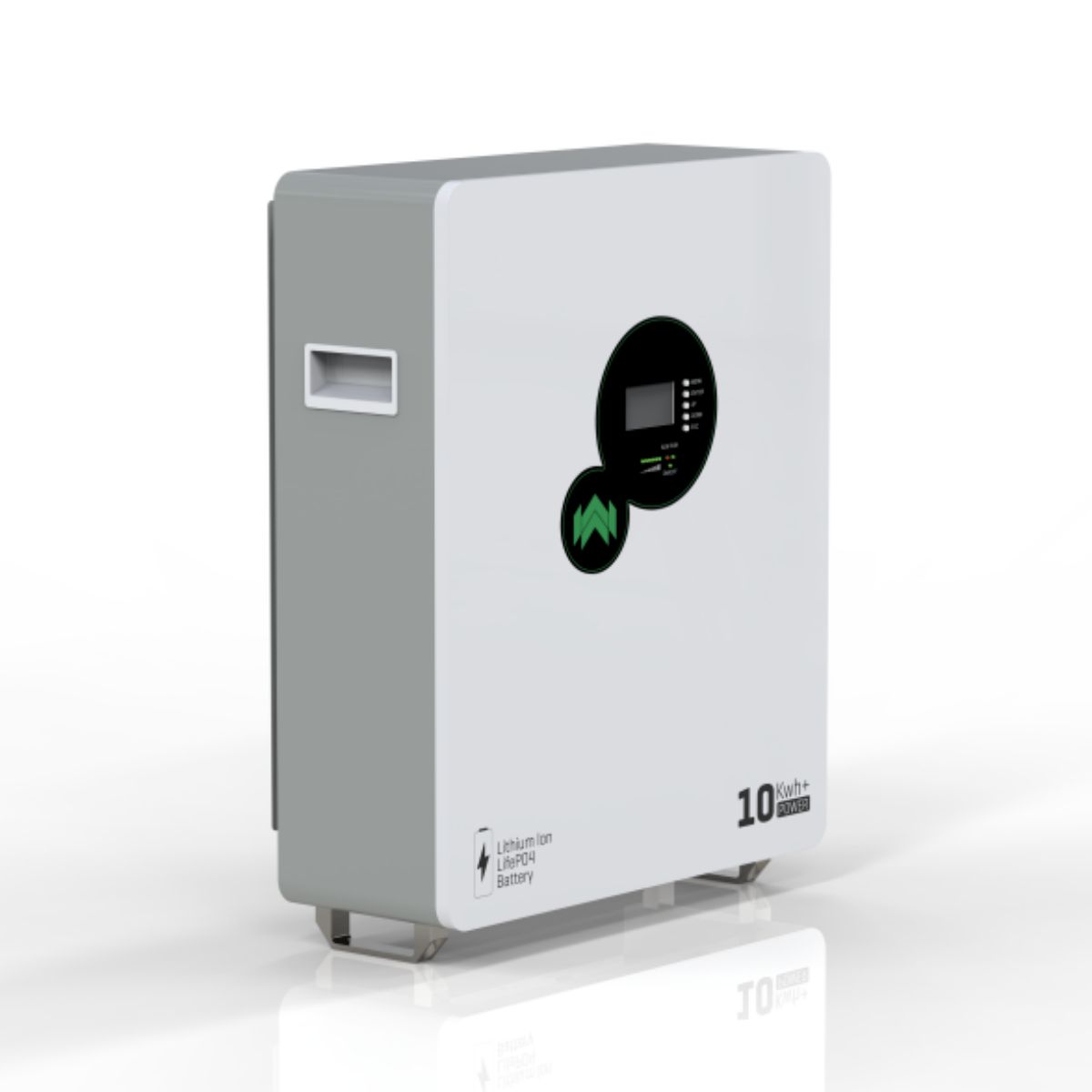

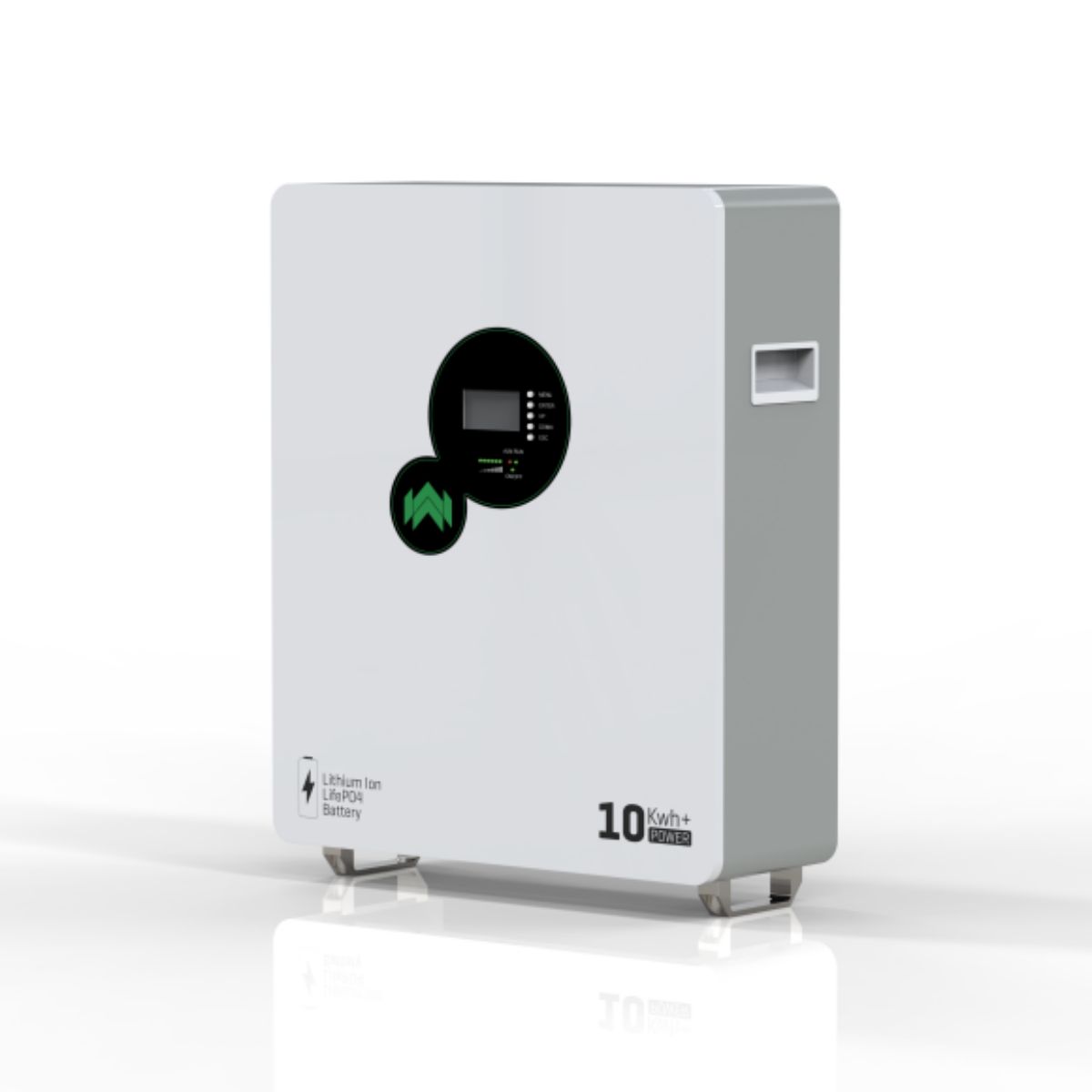

10kWh Wall-mounted LiFePo4 Battery
Product Introduction
15kWh wall-mounted LiFePO4 battery,designed for residential energy storage,stylish design and supports wall-mounted installation.
A Type of deep cycle and high capacity LFp battery with improved safety, long lifespan, and Worryfree user experience. Using Fully New A grade LiFePO4 Cells ,and fully quality inspected beforeshipment , battery lifespan can be over 10 years.Built in intelligent and reliable BMs, Support all.round monitoring of battery status, Multiple protections to ensure the safety for every user.With 1 5kWh for a single unit and max, 15 units in parallel upto 225kWh energy storage capacity , it canmeet most ofthe household electricity demand. Get ready with our battery for a fully charged life .
Features
Product specification
|
Basic Parameters |
NV-WM16S200 |
|
Nominal Voltage(V) |
48/51.2 |
|
Cell serial number(pcs) |
15/16 |
|
Nominal Capality(Ah) |
300 |
|
Energy(Wh) |
9600/10240 |
|
Discharge Cut-off Voltage (V) |
40.5(15S)/43.2(16S) |
|
Charge Cut-off Voltage(V) |
54.7(15S)/58.4(16S) |
|
Max Charge current (A) |
150 |
|
Max Continuous Discharge Current(A) |
150 |
|
Dimensions(LxWxH) |
675x485x190mm |
|
Weight (Kg) |
89/92 |
|
Communication |
CAN/RS232/RS485 |
|
Scalability |
Up to 15Units ,Suggest 8 Units Max |
|
Cycle Life |
>6000,25°C/77°F80%DOD |
|
Design life |
10+Years(25°C/77°F) |
|
Compatible Inverters |
DEYE /SOLIS/Growatt /LUXPOWER/Voltronics/Goodwe/ SMA/Victron/MEGAREV/SOROTEC/MUST/SUNWAVE etc. |
Application systerm
Off-grid,Hybrid, Back-up, Peak Shaving, and Virtual Power Plant Home Appliances, Uninterrupted
Power Supply

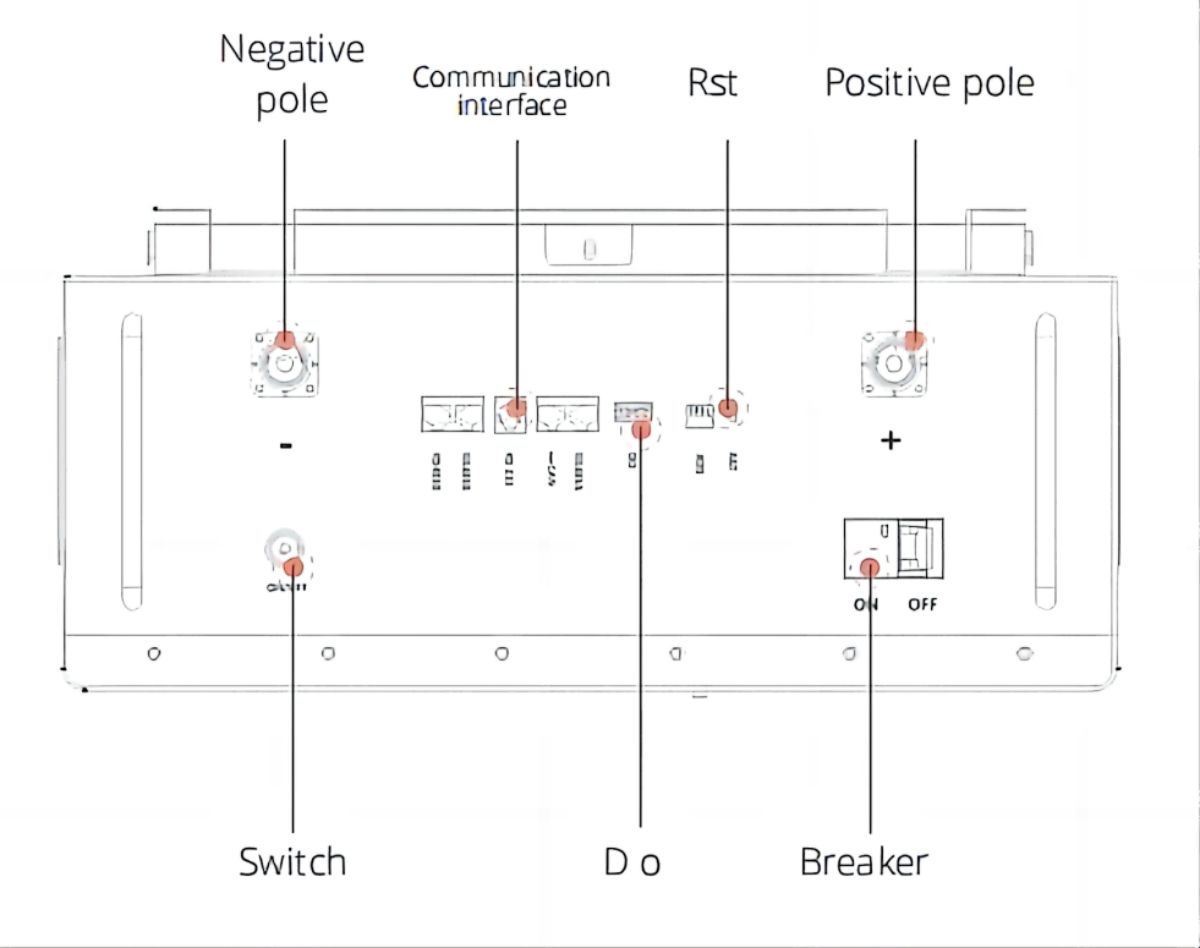

Panel Definition

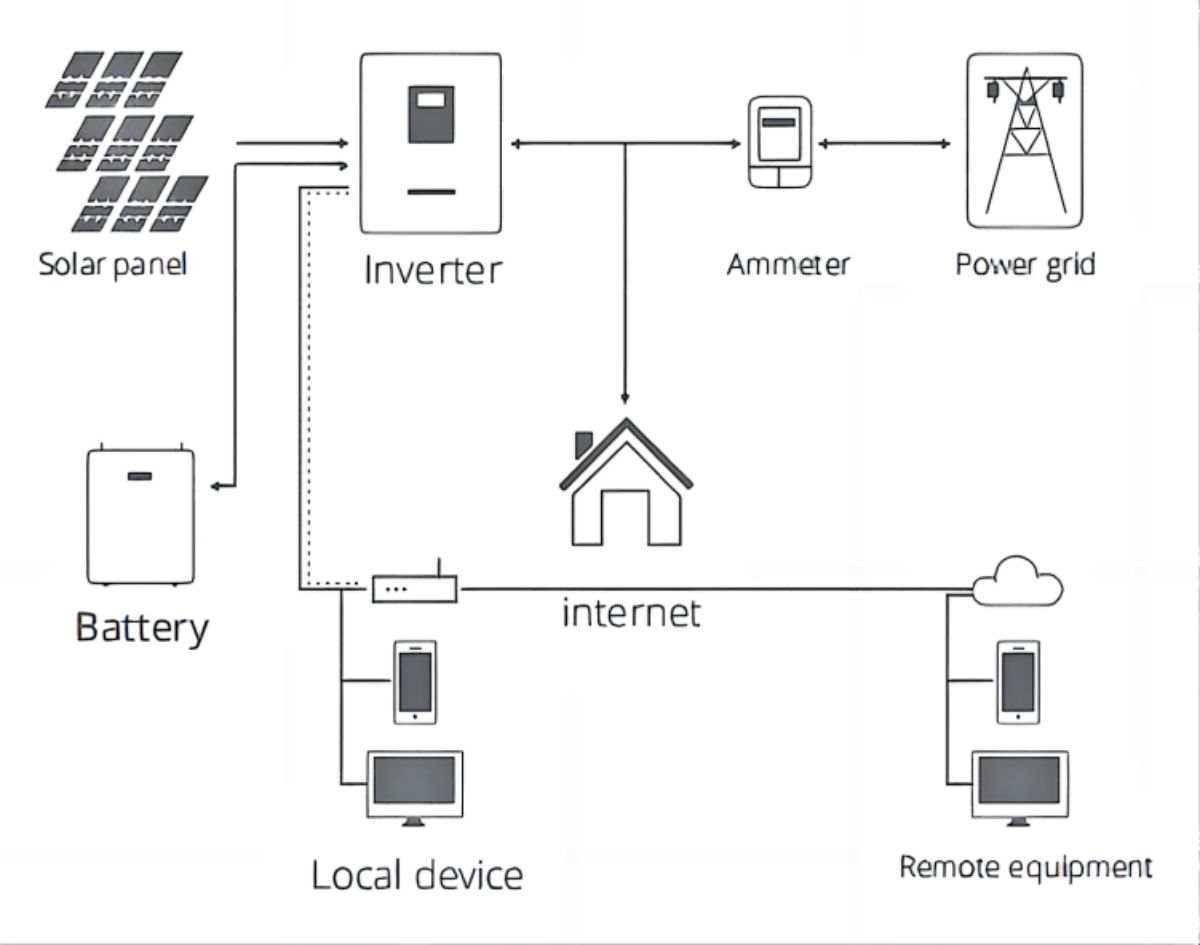

Product Application
